How Honda ditched conventional thinking to design a lighter crankshaft

In Japan, Honda R&D has been working collaboratively toward a more efficient automotive future with lighter crankshafts.

Honda's crankshaft design using generative design

Yasuo Matsunaka

January 26, 2022

min read
  • Crankshafts are integral to the operation of internal combustion engines used in road vehicles.

  • Transportation accounts for 24% of global carbon dioxide emissions.

  • By decreasing the weight of crankshafts, Honda aims to increase fuel efficiency and reduce carbon emissions from vehicles.

In the all-hands-on-deck fight to reduce greenhouse-gas emissions, design can play a crucial role in driving vehicle fuel efficiency. The International Energy Agency says that about 24% of global CO2 emissions come from transportation—including road, rail, air, and sea. Road vehicles are the biggest culprit. The EU reports that 30% of its CO2 emissions come from transportation, of which 72% comes from road transportation. To increase fuel efficiency and reduce carbon emissions from vehicles, decreasing the weight of automotive component parts proves very effective.

In Japan, Honda has several ongoing projects to lighten its components, from body frames and engines down to the bolts. To achieve a reductive design, the structure and materials used in every part must be scrutinized. The latest target for Honda R&D—the automaker’s research and development division—is the crankshaft.

What does a crankshaft do?

crankshaft design honda hirosumi todaka
Hirosumi Todaka, Materials | Processes, Innovative Research Excellence at Honda R&D

The crankshaft is one of the most important functional parts of an engine. It converts the oscillation of pistons into rotational force. This circular movement powers internal combustion engines needed for transportation. To do so, it must be extremely strong and durable.

“Crankshafts need to satisfy multiple functional criteria,” says Hirosumi Todaka, a mechanical and fluid machinery designer at Honda R&D’s advanced technology lab. “For example, its shape must be able to withstand combustion pressures, and the rotational balance must be maintained. These factors have dictated the crankshaft’s form to this day. Over the long history of engine development, the crankshaft design had become a foregone conclusion. Despite this, we set the challenging goal of designing a crankshaft to be 30% lighter than current models.”

Using generative design to change design norms

crankshaft design workshop for honda in wako saitama japan
A workshop held at Honda R&D in Wakō, Saitama, in Japan.

Honda’s R&D arm has studied additive manufacturing closely since its inception. While searching for design technology such as topology optimization, it found generative design (where multiple designs are generated and iterated upon) and realized that it could greatly change conventional design norms.

Generative design had already helped the industry to redesign components such as seatbelt brackets, engine control units, and motorcycle frames; significant weight reduction resulted in each case. “A new approach was required that used methods like generative design and additive manufacturing,” Todaka says. “We had to cast off preconceived notions and look at things in a new light.”

Honda R&D began its project—the first of its kind, in collaboration with Autodesk—focused on cultivating a flexible approach. “It is crucial that for our design, we discard biases to think about the purely essential functions of the part,” says Hisao Uozumi, who researches design production processes and new materials at Honda R&D. “To establish the basics of this approach, we held a critical-thinking workshop together.”

Building a better crankshaft

rendering of Honda's generative-design crankshaft model

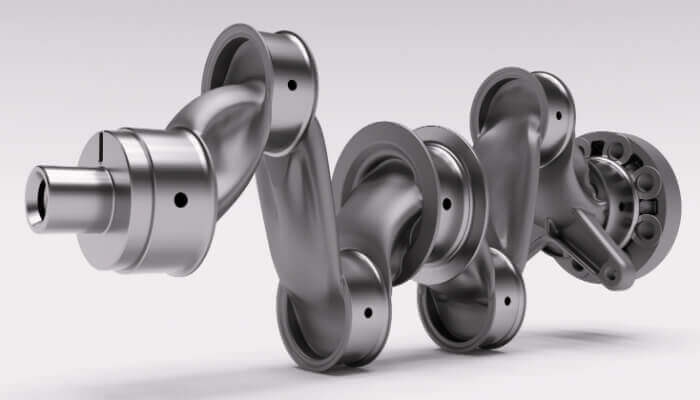

A rendering of the generative-design crankshaft model Courtesy of Honda R&D

Autodesk prepared a first-lot model that fulfilled Honda’s requirements for the part using Netfabb and Fusion 360. “We shared Honda’s expertise to provide data on weight and various operating constraints, then went over each point with the Autodesk team as the model took shape,” Todaka says.

In his work on engine parts for two- and four-wheel vehicles, Todaka had relied on his past experience to come up with designs to then analyze and refine. When he first saw the result, he was blown away. “The part had an organic shape, like a human bone,” he says. “It was something beyond my wildest imagination.”

Honda R&D project team members traveled to London, where they received training in generative design; toured the Autodesk Technology Center in Birmingham, England; and discussed topics beyond design, such as additive manufacturing. At the facility, Todaka says: “Prototypes could be made from designs quickly. I felt it was an ideal environment where feedback could be quickly applied to your work.”

The data from the prototypes made Honda rethink its layout and strength criteria, resulting in a new set of boundary conditions for the parts. The team continued its work and designed a second-lot model. “The Autodesk team had many members with various backgrounds, including aerospace,” Uozumi says. “They could see where we were going with our designs, and we put shape to our ideas in a relatively short amount of time.”

metal-printed prototype for Honda's generative-design crankshaft model

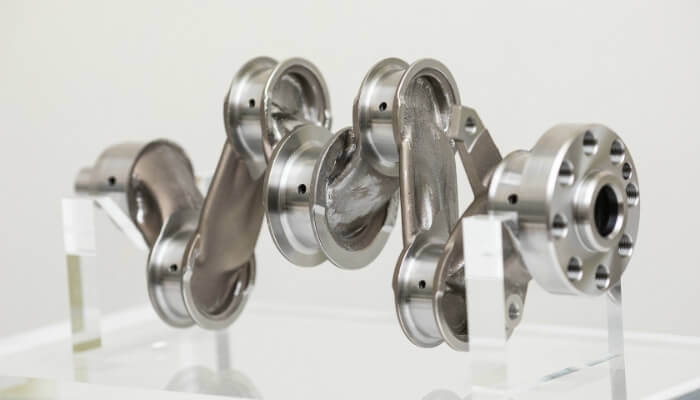

The metal-printed prototype for the generative-design crankshaft model Courtesy of Honda R&D

Conventional topology optimization provides only one solution and requires time-consuming manual corrections. Fusion 360’s generative design offered what Todaka says was “a configuration I had not even considered as a designer.” The new crankshaft design exceeded goals with a surprising 50% weight reduction, but doubts remained about whether the part’s rigidity and strength would hold up against typical crankshafts.

Team members mounted the prototype to an engine for performance testing and obtained a lot of data. They shared the results with the Autodesk team, which is using Honda’s data to refine its generative-design processes. “Applying generative design to a rotational part like a crankshaft has been an immensely valuable experience for both Honda and Autodesk,” Todaka says.

crankshaft design hisao uozumi honda
Hisao Uozumi, PhD, assistant chief engineer in the Fabrication Technology and Management Department, Wakō Administration Division at Honda R&D

Integrating manufacturing into the design process proved invaluable. “It provides us with models that can take into account design limitations, such as those introduced by using additive manufacturing, mold-based manufacturing, or 5-axis machining,” Todaka says.

For Honda, this project has revealed additive manufacturing’s possibilities. “While some still hold reservations about this new shape, the attention it has brought to the technology has been worth the effort,” Todaka says. “While there is still much that can be done to lighten parts, we can now see a way forward to reach our goals. In the future, I expect that innovative products created using generative design will be the norm. I think it is up to us to research further applications for this technology as part of our work.”

This article has been updated. It originally published in March 2020.
