Topology optimization definition

What is topology optimization?

Topology optimization is an algorithmic process that reveals the most efficient design based on a set of constraints or characteristics, often by removing material from the design. It concerns the number of connected components/boundaries belonging to the domain. Topological optimization techniques help users work around the limitations of pure shape optimization.

Product Design Manufacturing Collection

Improve design processes with topology optimization

Topology optimization usually occurs near the end of the
design process, typically when you run into weight
emergency or need to reduce material costs. It is a
mathematical method that uses simulation technology to
predict performance without the need to interpret
simulation results. Topology optimization technology
automatically makes the changes required to improve the design.

How topology optimization is used

Use topology optimization algorithms to develop a variety of complex engineering and design solutions.

  • Improve strength-to-weight ratios with light weighting

    LIGHT-WEIGHTING

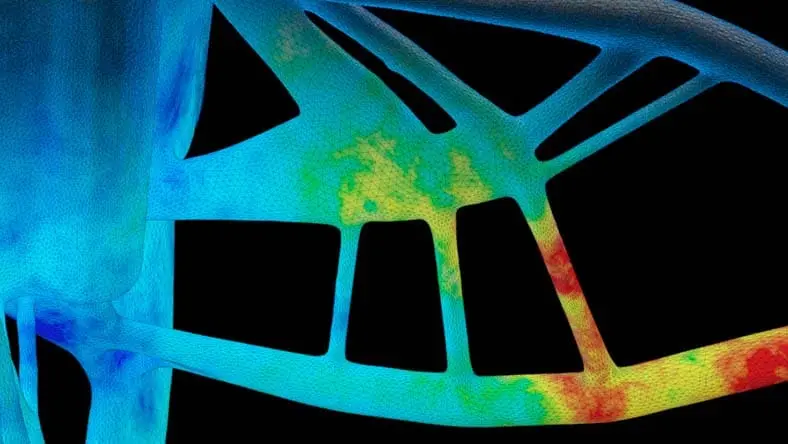

    Improve strength-to-weight ratios by removing excess material that is not necessary for the design’s performance requirements.

  • Help inform geometry decisions with shape optimization

    SHAPE OPTIMIZATION

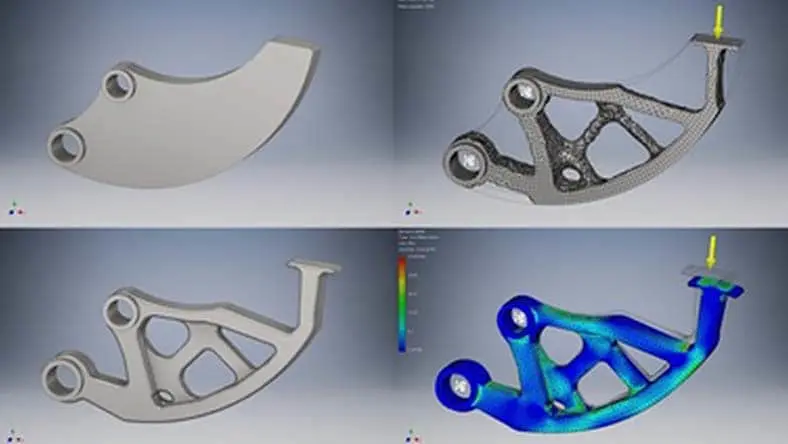

    Shape optimization technology helps inform certain geometry decisions to specific constraints such as manufacturing methods.

  • Structural compliance tools

    STRUCTURAL COMPLIANCE

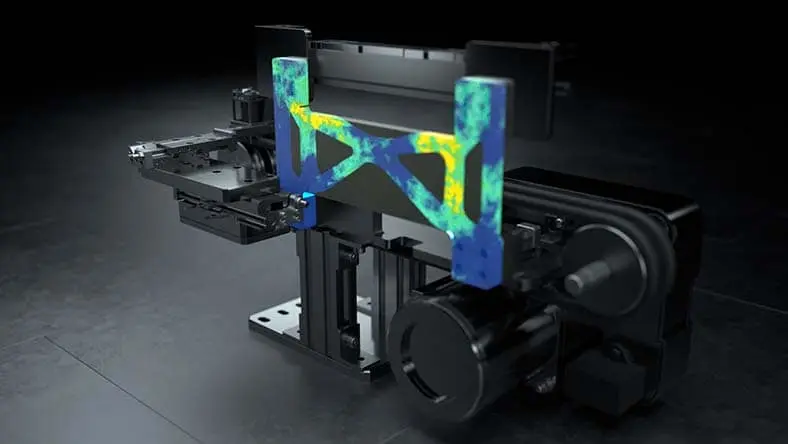

    Calculate the physical response of a given shape, depending on the forces the shape is subjected to.

  • Multiphysics designs with topology optimization

    MULTIPHYSICS DESIGNS

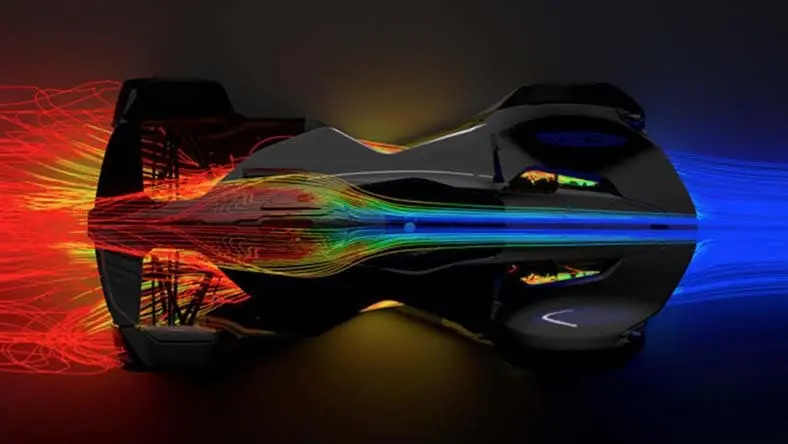

    Incorporate multiple types of physical phenomena such as fluid-structure interaction, thermal transfer, and stress loads to calculate optimal design.

The history of topology optimization

  • BIOMEDICAL ORIGINS

    Early uses of topology optimization

    Topology optimization was first used in the biomedical field for modeling implants to match the human skeletal structure. It then became widespread in aerospace. It is now used across advanced manufacturing industries.
