Massing models: Creating a canvas for creativity

Set the stage for detailed design and development with massing models. Shape the space, scale, and interactions of future buildings, ensuring structures complement their environments.

A 3D rendering of a building outlines its basic shape and elements.
A 3D rendering of a building outlines its basic shape and elements.

What are massing models?

Massing models are simplified 3D representations used in architecture and urban planning to explore a building project’s shape, form, and layout during early design stages.

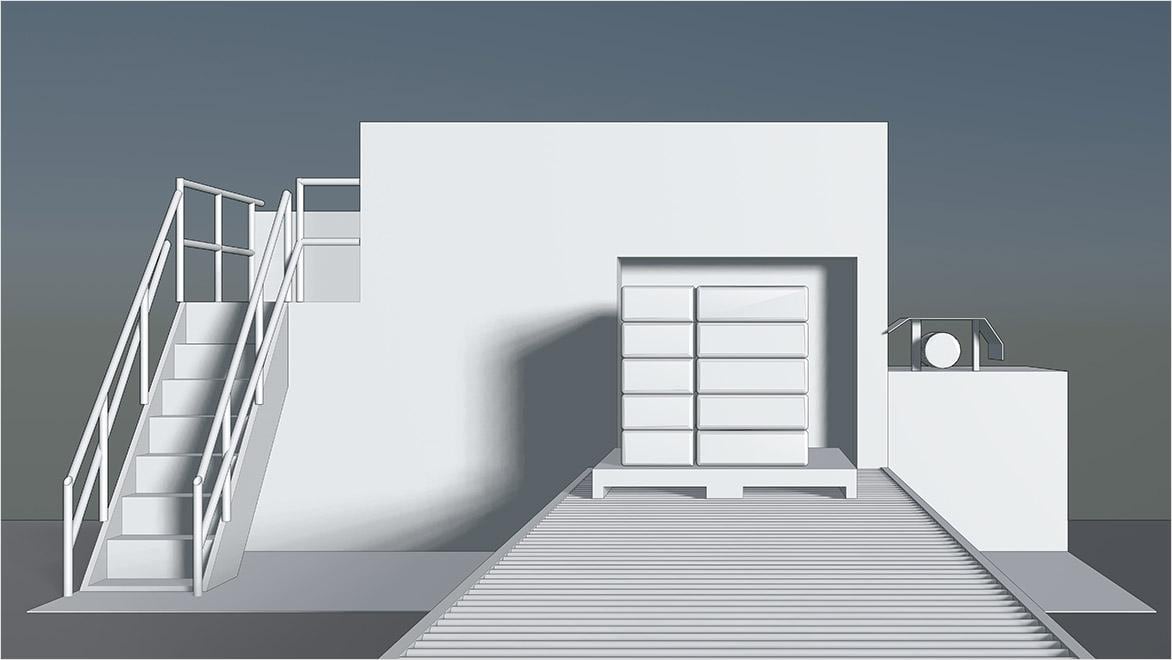

A 3D rendering shows an industrial building and its surroundings.
Massing determines how a building interacts with natural elements.

The significance of building massing

Massing heavily influences the aesthetics and functionality of architectural designs. Aesthetically, it determines visual balance, scale, and composition, integrating buildings with their surroundings and creating visually appealing and cohesive forms. Functionally, massing dictates spatial distribution, enhancing natural light access and ventilation crucial for occupant comfort and energy efficiency. It also impacts structural efficiency and the environmental footprint, affecting everything from material use to the building’s impact on urban wind patterns and solar access.

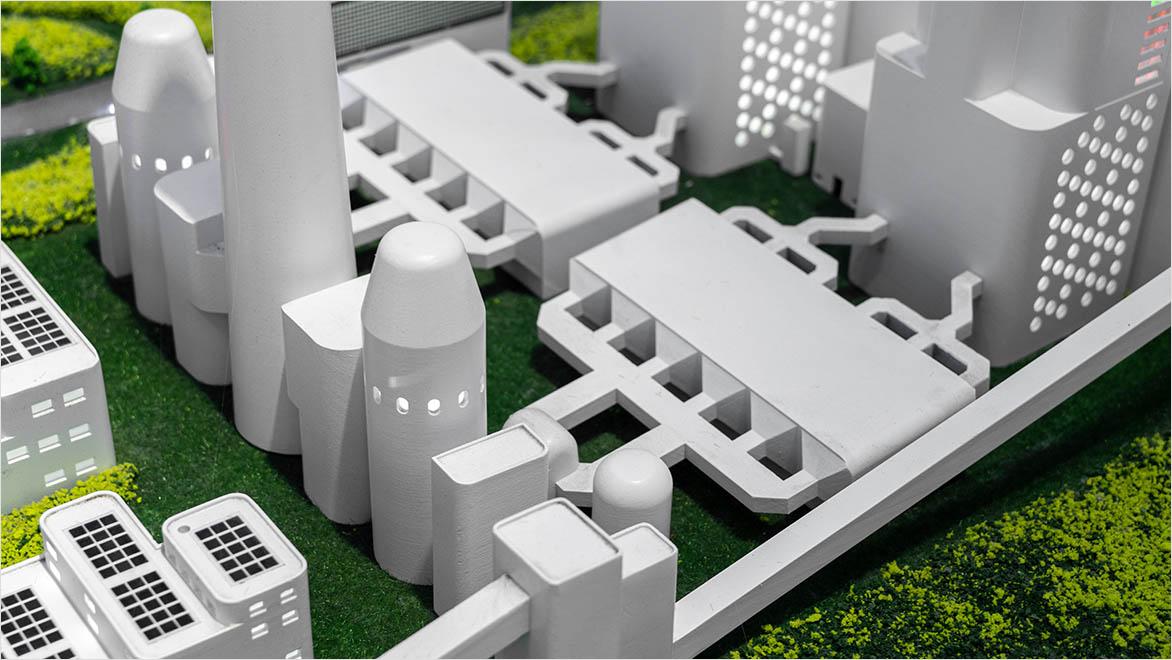

Massing plays a vital role in architectural design by influencing environmental and structural considerations. Environmentally, massing determines how a building interacts with natural elements like sunlight and wind, optimizing energy efficiency by enhancing solar gain or natural ventilation and minimizing adverse microclimatic effects such as heat islands or wind tunnels. Structurally, the configuration of mass affects load distribution, strengthening the structural integrity of the building against forces like wind and earthquakes and simplifying construction processes to reduce costs and timelines.

Practical applications of massing models in a design process

An architect shows a client a building model on a screen.
Massing models let architects communicate a project’s scale and form to clients.

Conceptualizing design ideas through simplified massing

Conceptualizing design ideas through simplified massing involves using basic geometric shapes to represent the form and volume of buildings. This technique lets architects explore spatial relationships, scale, and environmental interactions early in the design process. It facilitates quick iterations of form and function so architects can assess the feasibility of design concepts efficiently. Massing models are beneficial for communicating ideas to stakeholders, focusing on critical architectural decisions without getting bogged down in details.



Iterative testing of building shapes and layouts

Massing models are essential in architects’ iterative testing of building shapes and layouts, allowing rapid prototyping and visual assessment of different configurations. This process helps designers explore spatial relationships, optimizing sunlight and shadow dynamics and evaluating wind flow for natural ventilation. Massing models also help integrate new developments within their urban context and comply with zoning regulations. Through iterative adjustments, architects can effectively communicate with stakeholders, adjust designs based on feedback, and estimate costs and feasibility early in the design process.



Facilitating client and stakeholder engagement

Massing models are crucial for engaging clients and stakeholders in the architectural design process. They are a tangible and visual way to communicate complex architectural concepts and the project's scale and form. These models are accessible to non-architects, making it easier to provide feedback and collaborate effectively. Using massing models, architects can dynamically explore various design scenarios in real time, helping stakeholders understand the implications of different choices and fostering a collaborative decision-making environment.

The evolution of massing model techniques and executions

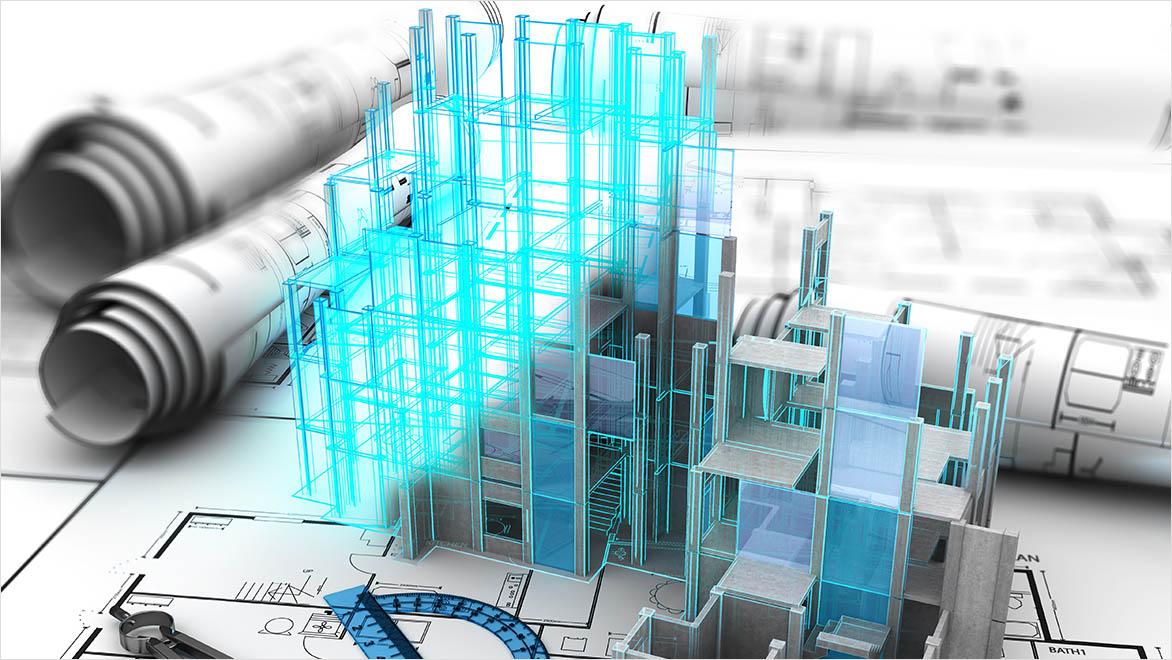

In this composite image, an architect’s model transitions from paper to digital.
Massing model techniques have evolved from paper sketches and hand-made physical models to digital models.

Massing model techniques have significantly evolved from traditional methods to advanced digital practices. Historically, architects used sketches and hand-made scale models from materials like wood and foam to visualize building forms and volumes. This manual approach was labor intensive and less adaptable to design changes.

The shift to digital technology marked a significant advancement in massing techniques. Software like AutoCAD, SketchUp, Forma, and Revit enable architects to easily create detailed and modifiable digital models. These tools provide levels of flexibility and precision that were previously unattainable. 3D printing has revolutionized the creation of physical models, allowing rapid production of complex forms directly from digital designs, enhancing the iterative process and stakeholder engagement.

Parametric and algorithmic methods, which automate the generation of model variations based on set parameters, further enrich the landscape of architectural design. This approach can optimize designs to meet specific functional and environmental criteria, pushing the boundaries of innovation in massing practices. Integrating thematic elements from pop culture into design illustrations, like ships from the Mass Effect video game, also reflects a blend of creativity and contemporary technology, catering to projects with a futuristic look.
