Steel construction systems: Building a stronger, more flexible future

Steel construction systems combine unparalleled strength, flexibility, and sustainability. Using integrated software solutions can elevate your projects to new heights.

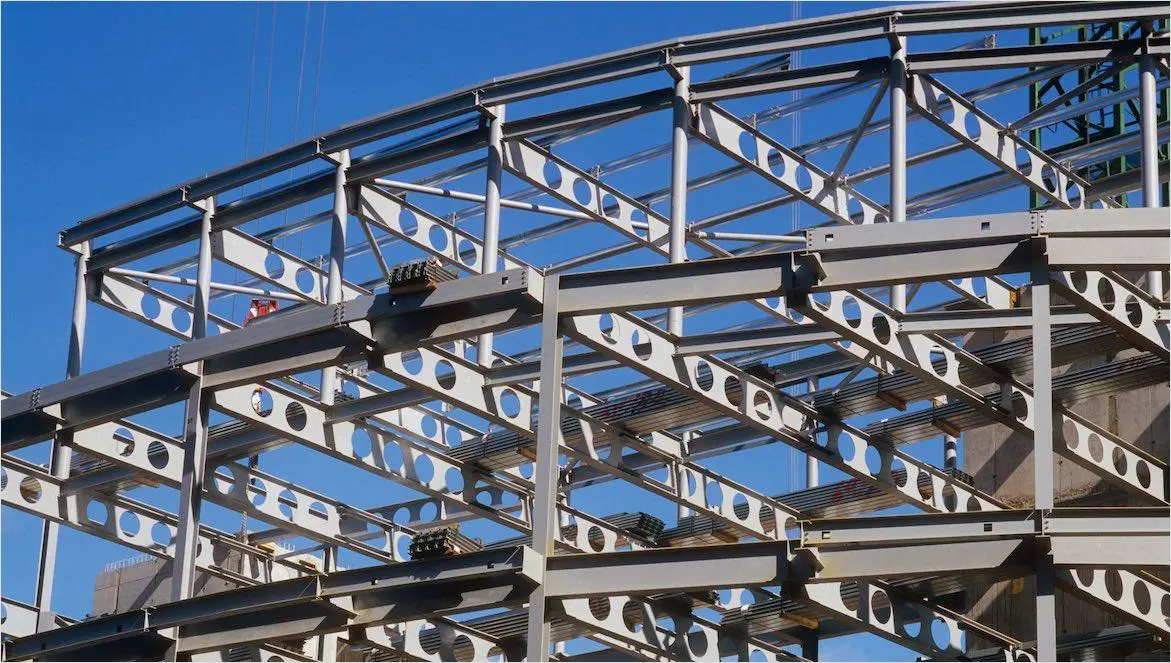

A building’s steel construction system is visible during early stages of construction.
Steel construction systems are frameworks that support buildings and structures.

What are steel construction systems?

Steel construction systems are frameworks that rely on steel’s durability, flexibility, and strength to support the loads and stresses of buildings and structures.

Components and characteristics of steel framing systems

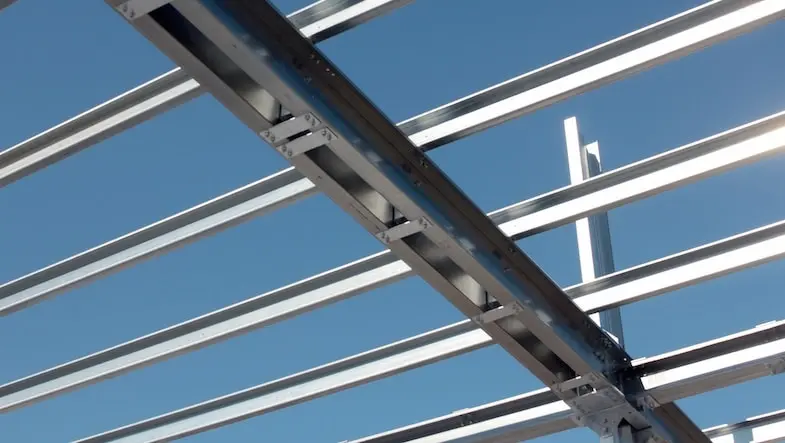

Light-gauge steel forms a building frame.

Light-gauge steel framing

Light-gauge steel framing uses lightweight yet strong cold-formed steel sections, which are ideal for residential and light commercial buildings. These frames are used for walls, floors, and roofs, providing a durable alternative to wood framing.

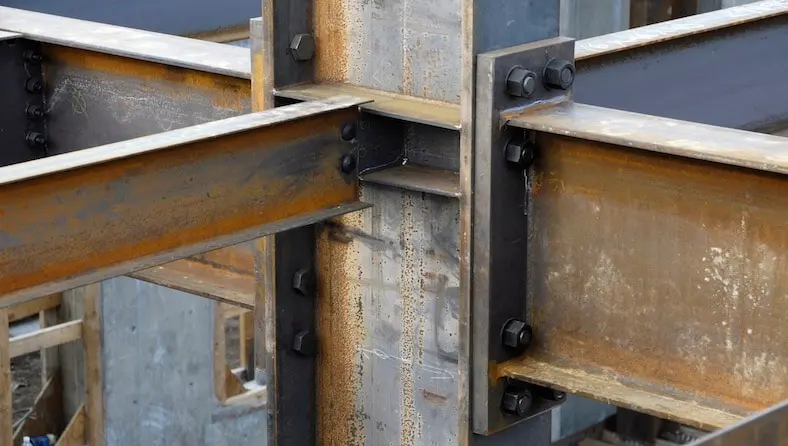

H-beams support a building’s structural elements.

Structural steel

Structural steel is specifically designed for construction and formed into widely used shapes such as I-beams and H-beams. With its high load-bearing capacity, durability, and ability to span large distances, structural steel is often used in extensive, complex structures such as high-rise buildings, bridges, and industrial facilities.

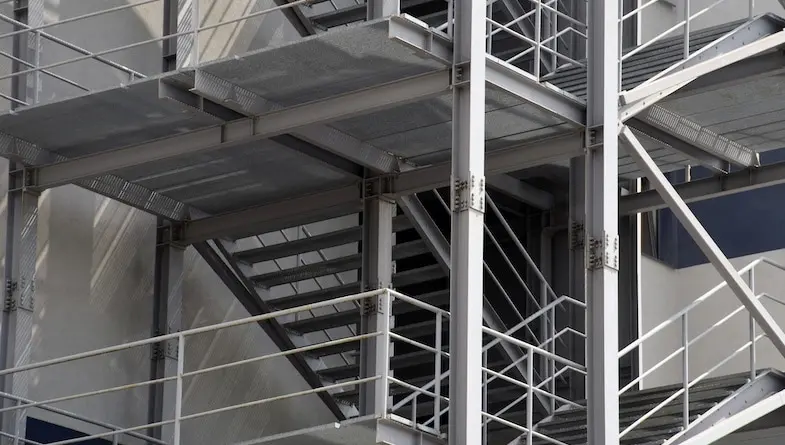

A detailed photo of a building fire escape illustrates cold-formed steel’s strength.

Cold-formed steel construction for midrise buildings

Cold-formed steel construction benefits midrise buildings with its excellent load-bearing capacity and resistance to environmental conditions. Shaped at room temperature, components are strong, flexible, and suitable for multistory structures.

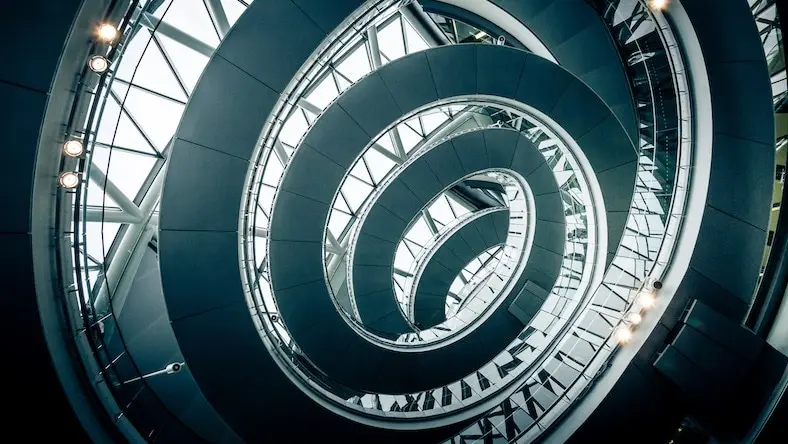

An interior photograph of London’s City Hall illustrates circular steel architectural elements.

Significance of steel framing systems in modern architecture

Steel framing systems have revolutionized modern architecture, allowing innovative and complex designs. Their high strength-to-weight ratio, durability, and versatility enable larger spans and open spaces, enhancing contemporary buildings’ aesthetics and functionality.

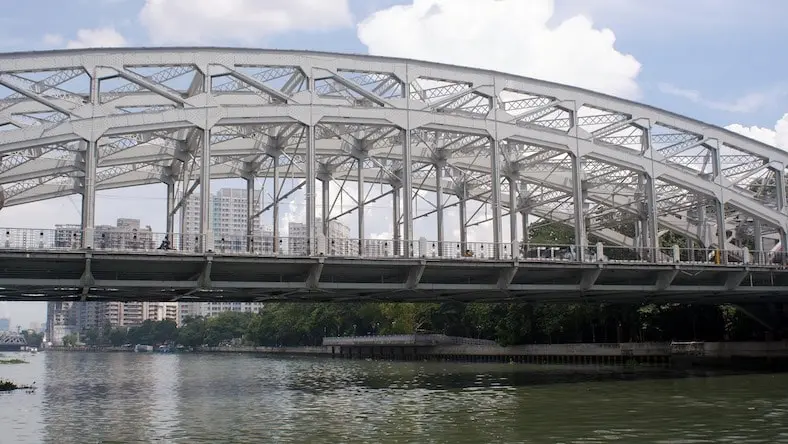

A photo of a steel bridge illustrates the function and placement of trusses.

Trusses and joists in steel construction

Trusses and joists are fundamental in steel construction. Trusses support roofs and bridges with triangular units that distribute loads efficiently, which is ideal for large spans. Joists, used for floors and ceilings, are preferred for regular floor layouts due to their simplicity and ease of installation.

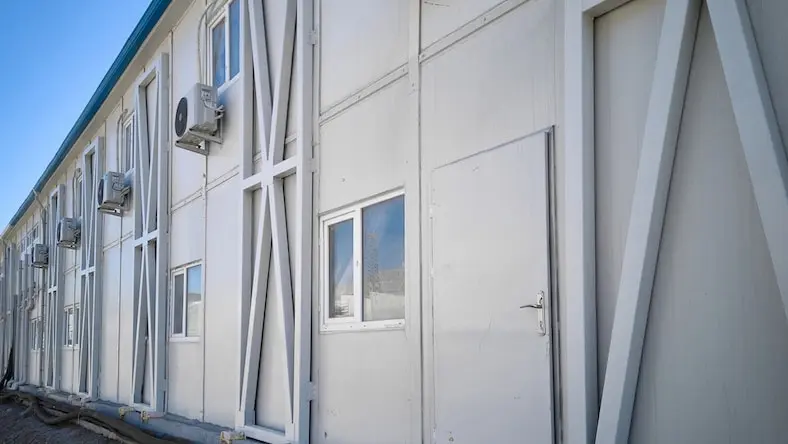

A steel prefabricated building houses a series of office spaces.

Prefabricated solutions in steel construction

Prefabricated steel solutions involve offsite manufacturing and onsite assembly, reducing construction time and waste and ensuring higher quality control. This approach is favorable for large-scale projects where speed and precision are critical.


The technical aspects of steel structure systems

The engineering behind steel construction

Engineering steel structures involves meticulous planning and precise safety, stability, and performance calculations. Key factors include:

  • Load bearing capacity: calculating dead, live, wind, and seismic loads to ensure steel components can handle these stresses
  • Material properties: selecting steel grades that balance tensile strength, ductility, and toughness to meet project requirements
  • Structural analysis: using advanced software to model structures, analyze stresses, and predict building behavior under various conditions


Key design considerations

Designing steel structures involves several critical aspects:

  • Building codes and standards: ensuring compliance with local and international codes such as ASTM, AISC, and Eurocode.
  • Connections and joints: designing welded, bolted, or riveted joints to transfer loads and withstand environmental stresses efficiently
  • Fire protection: using fire-resistant materials and designs to maintain structural integrity at high temperatures
  • Sustainability: emphasizing recycled steel, energy-efficient manufacturing, and waste-minimizing designs


Manufacturing processes for components

Steel component manufacturing involves:

  • Hot rolling: heating and rolling steel billets into shapes like I-beams, channels, and angles
  • Cold forming: shaping steel sheets at room temperature for high-strength, lightweight sections
  • Cutting and shaping: using CNC machines and laser cutters to produce precise dimensions and reduce waste
  • Welding and assembly: welding or bolting parts together with quality control measures such as non-destructive testing (NDT)
  • Surface treatment: protecting against corrosion with treatments like galvanizing, painting, or coating


Benefits of steel framing systems

Steel framing systems are desirable for a range of construction projects, offering many advantages, including:

Strength and durability

Steel framing systems support heavy loads and large spans, enhancing stability and safety.


Flexibility in design

Steel framing systems allow innovative designs with wide-open spaces and easy modifications for future changes.


Speed of construction

Prefabrication and quick assembly of steel construction systems reduce onsite construction time and labor costs.



Precision manufacturing of steel framing systems minimizes waste, and steel’s durability reduces long-term maintenance costs.


Environmental sustainability

Using recycled steel reduces the environmental impact of construction; prefabrication of steel construction systems can also reduce energy consumption during the building process.


Fire- and weather-resistance

Steel maintains structural integrity at higher temperatures compared to other materials and is resistant to extreme natural conditions such as high winds and seismic activity.


Autodesk software for steel construction systems

3D modeling software for steel detailing

Navisworks Manage, Navisworks Simulate software and the Navisworks Freedom 3D viewer for 5D analysis, design simulation, and project review.

Advanced BIM-integrated structural analysis and code compliance verification tool

Steel construction customer success stories

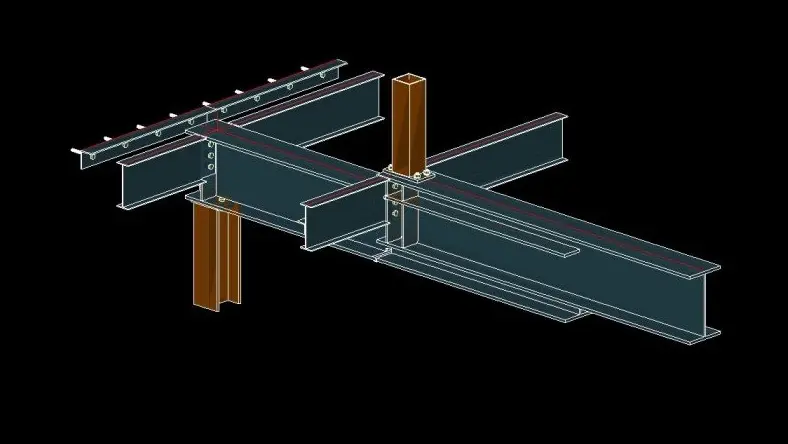

A detail of a steel beam is shown on a software screen.


Fabricating steelwork in less time

A structural steel company uses Autodesk Advance Steel to transform an 1874 stone church into a residential development in Boston.


Image courtesy of Lawton Welding, Co., Ltd.

Architects and their clients review a steel structure diagram on a tablet.


Redefining engineering excellence

An engineering planning and design firm uses Autodesk Advance Steel and the Autodesk Architecture, Engineering, and Construction Collection to deliver higher-quality projects faster.


Image courtesy of GRAEF

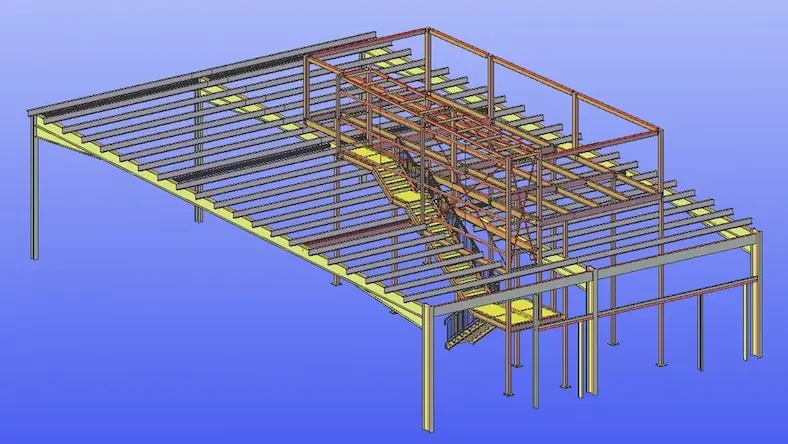

A rendering of a structural steel model of a warehouse is shown on a computer screen.


Bringing steel designs to life

A structural steel detailing company uses Autodesk Advance Steel, Revit, and Navisworks to ensure seamless collaboration, more accurate detailing, and efficient project execution.


Image courtesy of Steel Precision Group

Steel construction systems resources

Learn how to make the most of BIM data for steel detailing and fabrication, using advanced software to stay ahead in the structural engineering field.


Master a new workflow using Autodesk RevitRobot Structural Analysis, and Advance Steel to progress from design to fabrication.


Learn the essential approaches for managing large projects efficiently with Advance Steel.


Frequently asked questions (FAQ) about steel construction systems

What is a steel framing system?

A steel framing system is a construction method that uses steel components as the primary structural framework for buildings and structures. Known for their high strength-to-weight ratio, durability, and flexibility, these systems involve steel beams, columns, and joists to create a robust skeleton that supports and transfers loads.


Steel framing is resistant to pests, rot, mold, fire, and extreme weather, ensuring a longer lifespan and enhanced safety. It allows precise, quick assembly and can be easily modified or expanded. Steel framing systems are integral to modern construction, offering efficiency and sustainability.

What are the two most common steel structural systems?

The two most common steel structural systems are light gauge steel framing and structural steel framing. Light gauge steel framing uses thin, cold-formed steel sections, making it ideal for residential and light commercial buildings due to its lightweight yet strong nature, similar to wood framing but more durable.


Structural steel framing, involving heavier, hot-rolled steel sections like I-beams and columns, is used in larger, complex structures such as high-rises, industrial buildings, and bridges. This system offers superior load-bearing capacity, design flexibility, and the ability to span large distances without numerous support columns.

How do steel construction systems impact project costs and timelines?

Steel construction systems reduce project costs and timelines by offering material efficiency, lower labor expenses, and enhanced durability, which leads to reduced maintenance costs. Prefabrication of steel components allows for simultaneous site preparation and off-site fabrication, speeding up the construction process. Quick on-site assembly, reduced weather-related delays, and advanced steel construction software tools like Autodesk Advance Steel and Revit help streamline design and engineering, further accelerating project timelines. These advantages make steel construction systems effective for modern building projects, enhancing overall efficiency and profitability.

What types of steel are used in construction?

Various types of steel are used in construction, each selected for specific properties.

  • Carbon steel is the most common and includes low, medium, and high carbon steels known for their strength and durability.
  • Alloy steel contains additional elements like chromium and nickel to enhance properties such as toughness and corrosion resistance.
  • Stainless steel, with at least 10.5% chromium, offers excellent corrosion resistance and is used in harsh environments and aesthetic applications.
  • Weathering steel, or Corten steel, forms a protective rust layer for low-maintenance structures.
  • Galvanized steel provides added corrosion protection for roofing, wall panels, and structural framing.
