Outline

Pre-test

Before you begin this course, test your skills by taking the following assessment to see where you stand. Keep track of your incorrect answers to know which skills you should study. You'll have a chance to take this same practice test again at the end of the course to see how you've improved.

All questions must be answered to submit your assessment.

Pre-assessment

56 questions

1.
Refer to the exhibit. To ensure dimensions are always placed on the correct layer, you can utilize Dim Layer Override. In which area of the Dimensions panel is this set?

Error: Select an answer

2.
Refer to the exhibit. The arc on the left needs to be modified so that it looks like the arc on the right. Which is the best method to achieve this?

Error: Select an answer

3. When sending an etransmittal using ETRANSMIT, the files can be sent as a package. Which package filetype can be used?

Error: Select an answer

4.

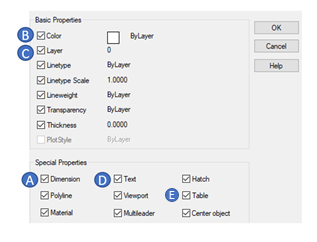

Refer to the exhibit. You want to use MATCHPROPERTIES to change all the dimension annotation to use the same dimension style and layer. Which properties should you select? (Select two.)

Select 2 answers below.
Error: Select 2 answers

5. Symbols from the character map can be inserted into multiline text (MTEXT). Which method should be used to do this?

Error: Select an answer

6.
Refer to the exhibit. You want to rotate the chair on the left so it looks like the chair on the right (parallel to the desk). Pick the point on the chair that should be used as the basepoint.

Error: Select an answer

7.
Refer to the exhibit. A dashed line needs to be placed that precisely connects the two point objects. Which object snap should be used?

Error: Select an answer

8.
Refer to the exhibit. Blocks not being used in a drawing can be tidied up using the PURGE command, as shown in the exhibit. Which option allows you to check sequentially which blocks are being purged from the drawing?

Error: Select an answer

9. Which of the following object types can be converted into a region? (Select three.)

Select 3 answers below.
Error: Select 3 answers

10. Which command allows you to plot multiple drawings in AutoCAD?

Error: Select an answer

11. What occurs when a field is inserted into text?

Error: Select an answer

12. Which of the following can hyperlinks be linked to? (Select three.)

Select 3 answers below.
Error: Select 3 answers

13.

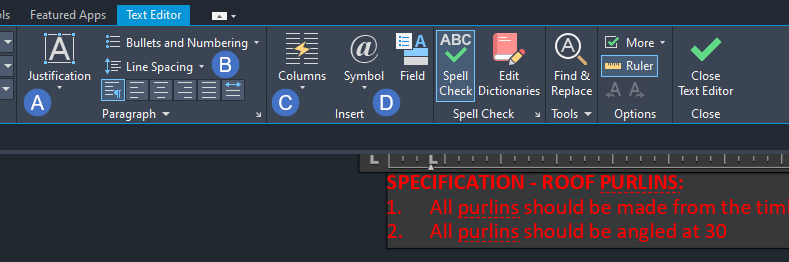

Refer to the exhibit. The Text Editor tab allows for the insertion and manipulation of special character types. A specific character is needed to finish item 2 in the roof purlin specification shown. Select the appropriate part of the Text Editor in which you will need to do this.

Error: Select an answer

14. An array is used to place multiple instances of the same object(s). What is the appropriate method of placement for the array objects?

Error: Select an answer

15.
Refer to the exhibit. You use the DIMBREAK tool to create the dimension breaks as shown in the exhibit. What controls the amount of gap applied?

Error: Select an answer

16.

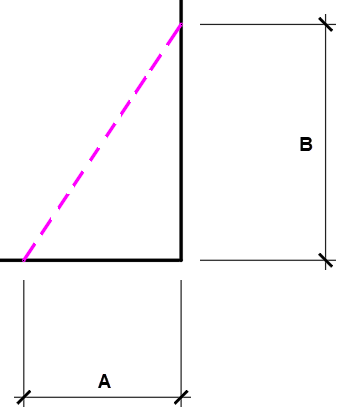

Refer to the exhibit. A corner of an object requires a chamfer as shown in the exhibit. Each length (A and B) is different. Which option in the CHAMFER command gives you the desired result?

Error: Select an answer

17. You are working in AutoCAD, and there is an unexpected power outage. Upon powering up AutoCAD again, what tool should you use to check the integrity of the DWG file you were working on?

Error: Select an answer

18. By mistake, only the hatch object was moved in a drawing revision. Which tool will rectify this situation?

Error: Select an answer

19. When using the Polyline option in the WIPEOUT command, on which layer will the wipeout be placed?

Error: Select an answer

20. How do you remove objects from a selection set?

Error: Select an answer

21.
Refer to the exhibit. Oblique angles can be applied to dimensions, especially when working in isometric drafting. Which tool should be used to add oblique dimension angles? (Choose the letter that matches the icon.)

Error: Select an answer

22. Select the appropriate method to rotate a viewport.

Error: Select an answer

23. Which of the following statements are true about grips? (Select three.)

Select 3 answers below.
Error: Select 3 answers

24. What does the DRAWORDER command allow you to do in the drawing? (Select three.)

Select 3 answers below.
Error: Select 3 answers

25.
Refer to the exhibit. Which area of the interface is used to filter for Line objects in the drawing?

Error: Select an answer

26.
Refer to the exhibit. You can move the origin of the UCS using grips. Select the appropriate grip you would use to move the UCS shown.

Error: Select an answer

27. When defining attributes, what attribute mode is used to ensure multiple attributes are ordered neatly in a block?

Error: Select an answer

28. To create a polyline with width about its centerline, which variable should be defined?

Error: Select an answer

29. A rectangular boundary encloses a landscaping layout represented by a number of geometric objects. When hatching, the hatch pattern covers all of the objects within the boundary. Which hatch setting needs to be changed?

Error: Select an answer

30.
Refer to the exhibit. Select the letter of the layer control used to change the color of the mark ups later in the current viewport.

Error: Select an answer

31. If an annotation scale is not assigned to an annotative object but is used in a scaled viewport, what happens to the annotative object?

Error: Select an answer

32. Where are the tools to isolate or hide objects in a drawing located?

Error: Select an answer

33. To represent a circular hole in a 2D isometric view, which command should you use?

Error: Select an answer

34.

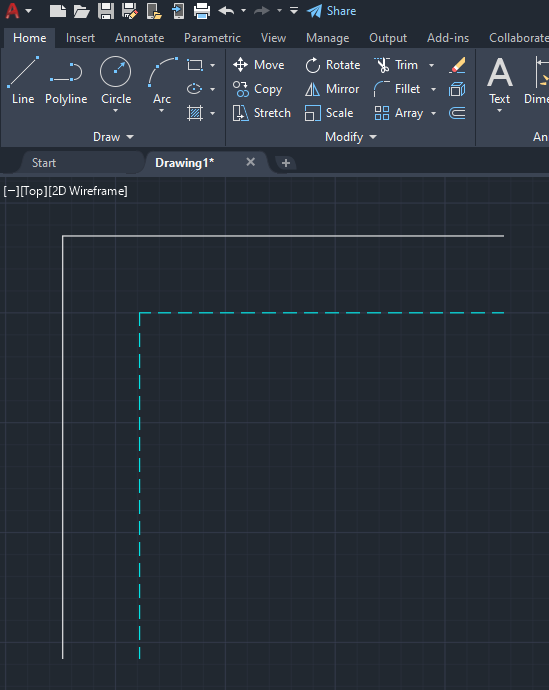

Refer to the exhibit. The exhibit shows a wall line (dashed) that has been offset using the OFFSET command. What option in the OFFSET command is used to achieve the dashed offset line?

Error: Select an answer

35. Which tool allows you to retain and restore the settings of more than one layer at a time?

Error: Select an answer

36. When working with xrefs in a drawing, a clipping boundary can be used to manage the display of the xref in the host drawing except for which of the following?

Error: Select an answer

37.
Refer to the exhibit. You are working in a layout in paper space. How do you add a custom scale to the scale list? (Select two.)

Select 2 answers below.
Error: Select 2 answers

38.

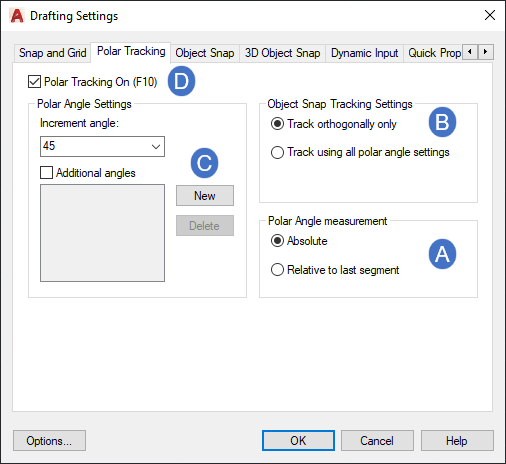

Refer to the exhibit. When adding new angles to the Polar Tracking list, certain settings have to be verified. Which setting should be used for this to happen?

Error: Select an answer

39. The Viewports (VPORTS) command allows you to set up viewports in the Model tab and Layout tabs. When a layout is current, which ribbon tab can be used to create and configure viewports?

Error: Select an answer

40. An xline is infinite in how many directions?

Error: Select an answer

41. How does Drawing Compare automatically display the differences between drawings?

Error: Select an answer

42. What occurs if no text height is assigned in a text style?

Error: Select an answer

43. Which properties and settings cannot be changed using the Block Attribute Manager (BATTMAN)?

Error: Select an answer

44.

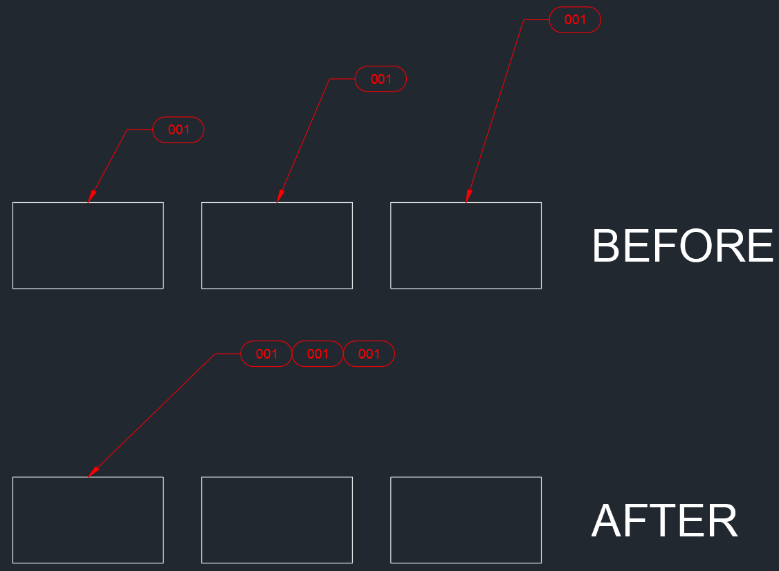

Refer to the exhibit. Three multileaders in a drawing (BEFORE) need to be revised to suit the new leader arrangement (AFTER). Which multileader command should you use?

Error: Select an answer

45.
Refer to the exhibit. The image below shows a design that has filleted corners but the angled geometry has been left in place. To create fillets without trimming the corner(s), which setting in the FILLET command do you select?

Error: Select an answer

46.

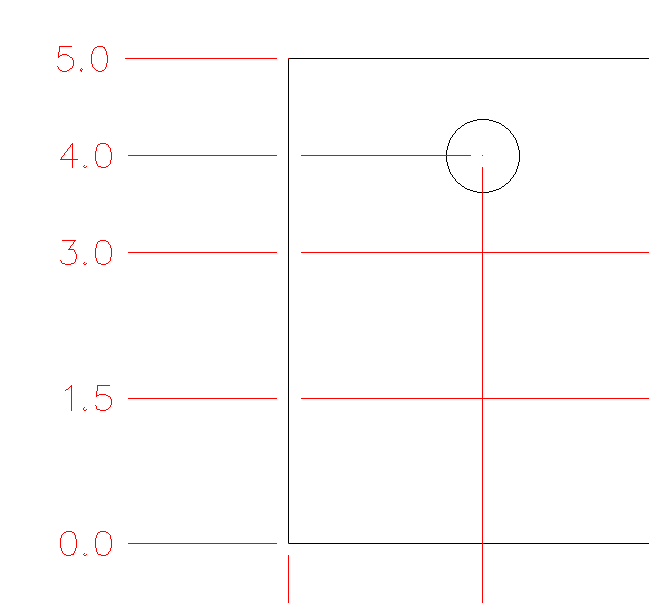

Refer to the exhibit. You need to move the existing circle to a new location that is half the total length and half the width of X in the exhibit. What’s the fastest way to locate the second point, the new center of the circle?

Error: Select an answer

47. You have a drawing with several blocks in it. You want to make sure that the blocks are saved to a separate drive folder as separate DWG files. Which command should be used?

Error: Select an answer

48. How do you identify the annotative scale of a text object?

Error: Select an answer

49. There are several blocks named K-1054 in your current drawing. If you create a new block with the same name but with a different appearance, what will occur?

Error: Select an answer

50. Objects are selected in Drawing A. You right-click and choose Copy with Basepoint and specify a basepoint. Upon switching to Drawing B, you right-click and choose Paste as Block. What is the result?

Error: Select an answer

51. What occurs if an external reference is attached as an overlay in the host drawing and you then use the host drawing where the overlay is attached as an external reference?

Error: Select an answer

52. You are working with two scaled viewports of differing scales. The dimension annotations in both viewports are the same by way of text height and arrowhead size. Why is this the case?

Error: Select an answer

53. To convert a line segment of a polyline into an arc, which part of the polyline should be used?

Error: Select an answer

54. What workflow should be used in order to create a corner between two perpendicular lines?

Error: Select an answer

55. After you select the vertex of a six-sided polygon, what multi-grip options are available? (Select three.)

Select 3 answers below.
Error: Select 3 answers

56. You can use the ALIGN command to ensure consistent multileader display. What occurs if you align multileaders using the PARALLEL option?

Error: Select an answer

Error: 56/56 questions unanswered
56/56 questions unanswered
