When manufacturers compare 3-axis and 5-axis machining, the conversation usually starts with machine cost. Five-axis machines require a larger investment, so it’s easy to assume that 3-axis machining is always the more economical option.

However, the most important question is: What does the part geometry require?

A relatively simple part can often be machined efficiently on a 3-axis machine with excellent results. More complex components may benefit from indexed 5-axis or simultaneous 5-axis machining because they reduce setups, improve access to features, and simplify manufacturing workflows.

The ultimate goal is to choose the machining strategy that produces the part most efficiently and accurately.

Start with the geometry

Part geometry should drive machining decisions.

For components with flat faces, pockets, drilled holes, and features accessible from a single direction, 3-axis machining is often the most practical choice. These parts can frequently be produced with straightforward setups, familiar programming workflows, and excellent productivity.

As geometry becomes more complex, however, manufacturing challenges begin to emerge. Parts with multiple faces, angled features, deep cavities, sculpted surfaces, or difficult-to-reach areas may require numerous setups on a 3-axis machine. Each additional setup increases labor, inspection requirements, and opportunities for error.

This is where multi-axis machining becomes valuable.

Understanding the three main approaches

Many manufacturers think machining is a choice between 3-axis and full simultaneous 5-axis. In reality, there is an important middle ground: indexed 5-axis machining, often called 3+2 machining.

For many manufacturers, indexed 5-axis machining often provides the best balance between capability and complexity. It delivers many of the setup reduction benefits of 5-axis machining without requiring full simultaneous tool motion.

When 3-axis machining makes the most sense

Three-axis machining remains the foundation of modern manufacturing for a reason. It’s particularly effective for:

• Plates and brackets
• Fixtures and workholding devices
• Enclosures and housings
• Blocks and prismatic components
• Parts that can be machined efficiently from one primary direction
• Production work involving relatively simple geometry

For these applications, a 5-axis machine may not provide meaningful advantages.

A well-programmed 3-axis workflow can deliver high accuracy, excellent surface quality, and efficient cycle times. Adding machine complexity where it isn’t needed can increase programming effort without creating additional value.

When geometry pushes you toward 5-axis

Some parts simply become difficult to manufacture efficiently using traditional 3-axis strategies. Common examples include:

• Aerospace components
• Impellers and blisks
• Medical implants
• Mold and die tooling
• Consumer products with organic surfaces
• Components requiring machining from multiple angles

In these situations, multiple setups are often required on a 3-axis machine. Operators may need to repeatedly remove and reposition the part to access different features.

Each repositioning introduces additional setup time and increases the potential for alignment issues and tolerance stack-up.

Multi-axis machining helps address these challenges by allowing the machine to orient either the part or the cutting tool to improve access to the geometry.

Tool access often drives the decision

One of the most practical reasons manufacturers adopt 5-axis machining is improved access to difficult features.

When machining deep cavities or steep walls using 3-axis strategies, programmers may need longer cutting tools to reach the necessary geometry. Depending on the application, these longer tools can be more susceptible to deflection and vibration.

With indexed or simultaneous 5-axis machining, the machine can orient the tool more effectively relative to the workpiece. This often improves access to difficult areas and can simplify the machining strategy for complex parts.

While better access does not guarantee improved machining results, it is often one of the primary reasons manufacturers choose a multi-axis approach.

Setup time matters more than machine cost

Many shops evaluate machining strategies based primarily on machine hourly rates. However, setup time can have a major impact on overall production costs.

Consider a component that requires machining on five different sides.

Using a traditional 3-axis process might require:

1. Machine the first side
2. Remove the part
3. Re-fixture it
4. Reset work coordinates
5. Repeat for additional sides

Even if spindle time remains reasonable, labor and setup costs can increase significantly.

Indexed 5-axis and simultaneous 5-axis machining can often consolidate many of these operations, reducing the number of setups required to complete the job.

For high-mix manufacturers and job shops, setup reduction is frequently one of the strongest business cases for adopting multi-axis machining.

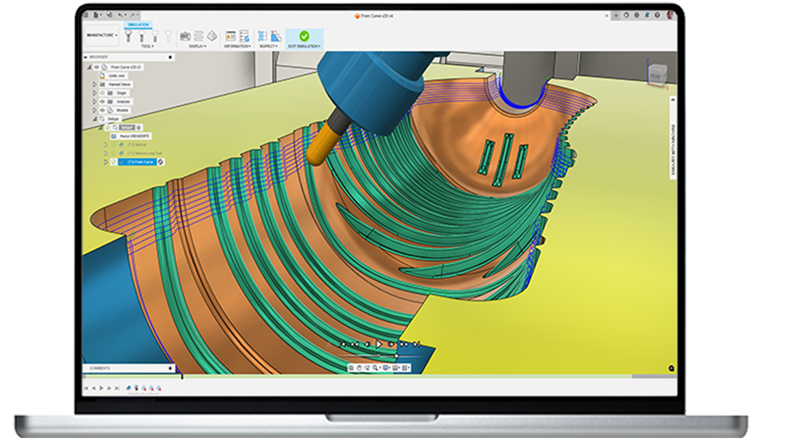

How Fusion for Manufacturing supports multi-axis workflows

Fusion for Manufacturing supports a range of machining workflows, including 2D, 2.5D, 3-axis, 4-axis, and 5-axis machining operations. This allows manufacturers to create traditional 3-axis toolpaths, indexed 5-axis strategies, and advanced multi-axis operations within the same CAM environment.

One advantage of Fusion’s integrated CAD and CAM workflow is that design and manufacturing data are connected to the same model. When designs change, manufacturers can update and regenerate manufacturing workflows without moving data between separate CAD and CAM systems, helping reduce manual file transfers and revision-management challenges.

This makes it easier to compare alternative machining approaches during process planning and determine whether a part truly requires simultaneous 5-axis machining or whether a simpler indexed 5-axis or 3-axis strategy is sufficient.

The right choice depends on the part

There is no universal winner in the 3-axis versus 5-axis debate.

Many components can be manufactured efficiently on a 3-axis machine. Others benefit significantly from indexed 5-axis machining, while the most complex geometries may justify full simultaneous 5-axis toolpaths.

The most successful manufacturers start with the requirements of the part rather than the capabilities of the machine.

If the geometry can be reached easily and setup complexity is low, 3-axis machining is often the best choice. If multiple setups, difficult tool access, or complex surfaces begin driving cost and complexity, multi-axis machining may provide a more efficient path to production.

The smartest machining strategy is not necessarily the most advanced one. It’s the one that best matches the geometry, tolerances, and manufacturing requirements of the part.
