Optimize CNC setupwith machine‑aware workholding in Fusion. The 5th Axis Workholding Intelligence Add‑In helps small shops save time and standardize proven setups.
For shop owners and operators, time on the machine is what drives revenue, but time spent configuring setups, sourcing workholding, and validating designs can quietly eat into margins.
What if those steps were faster, more reliable, and fully integrated into the way you already work?

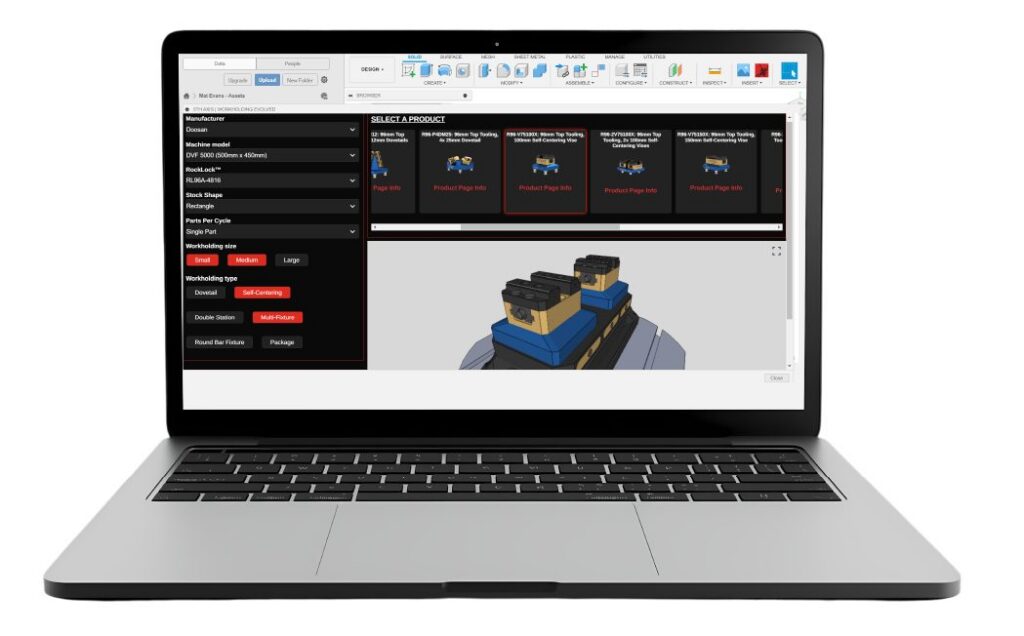

The 5th Axis Workholding Intelligence Add-In for Autodesk Fusion is designed to do exactly that. It brings workholding configuration, visualization, and purchasing directly into your CAD/CAM environment.
Reduce setup time without sacrificing accuracy
In many shops, configuring workholding still involves a mix of manual steps: referencing catalogs, checking compatibility, and recreating setups in CAD. This fragmented process introduces risk, wrong components, missed clearances, or inefficient setups.
The add-in streamlines this by embedding the entire workflow inside Fusion. You can configure machine-specific setups, visualize them in context, and validate performance before anything hits the spindle.
For owner-operators, that means fewer surprises on the shop floor, and more confidence in every job you run.
Start with your machine, not a catalog
Every setup starts with constraints: machine size, table configuration, and available travel. The add-in reflects this reality by letting you select your CNC machine or table size first.
From there, it automatically filters compatible workholding solutions, so you’re only working with options that fit your equipment.
This machine-aware approach eliminates trial-and-error and helps standardize setups across jobs and operators.
Explore and configure workholding in 3D
Once your machine is defined, you can browse a full range of 5th Axis workholding solutions, including:
- RockLock plates
- Tombstones
- Modular vises
- Dovetail fixtures
Each component is fully interactive in Fusion’s 3D environment. You can rotate, zoom, and inspect parts in real time, making it easier to evaluate how a setup will perform before committing to it.
For shops running tight tolerances or complex parts, this level of visibility is critical.
Validate fit, reach, and clearance early
A common source of lost time in CNC machining is discovering issues too late—whether it’s tool reach limitations, interference, or poor fixture placement.
With the 5th Axis add-in, you can insert selected components directly into your Fusion design and validate:
- Part fit and positioning
- Tool access and reach
- Potential collisions
Catching these issues upfront reduces scrap, avoids rework, and keeps production moving.
Go from design to purchase without leaving Fusion
Procurement is often a separate step, but it doesn’t have to be.
Once your setup is finalized, you can complete your order directly inside Fusion. There’s no need to switch platforms, reconfigure parts, or manually transfer information.
For busy shop owners, this reduces administrative overhead and ensures that what you order matches exactly what you designed.
Build repeatable, scalable workflows
Consistency is key to scaling a shop. The add-in allows you to save configurations and reuse them across future jobs, helping you:
- Standardize proven setups
- Reduce programming and setup time
- Train new operators more efficiently
Over time, this creates a library of validated workflows that improve throughput and predictability.
A practical advantage for small and mid-sized shops
For owner-operators and small teams, every decision impacts profitability. The combination of machine-aware filtering, integrated 3D visualization, and in-platform purchasing helps:
- Reduce setup errors
- Shorten lead times
These aren’t incremental improvements. They directly affect how efficiently your shop runs.
Get more value from your Fusion workflow
As an added benefit, Fusion users can receive 10% off qualifying orders placed through the add-in (available in the U.S., Canada, and Mexico; terms apply).
Start streamlining your CNC workflow
If you’re looking to simplify setup, reduce risk, and get more out of your machining operations, the 5th Axis Workholding Intelligence Add-In is a natural extension of your Fusion workflow.
Install it from the Autodesk App Store and start building smarter setups, without leaving Fusion.
