Moving from a functional prototype to a scalable production unit requires a rigorous approach to design validation and physical optimization. For engineering teams, the process involves a deep understanding of manufacturing constraints, thermal management, and signal integrity. Without this understanding, a design that works on a lab bench may fail in a high-volume assembly line if the layout does not account for automated pick-and-place tolerances or thermal dissipation requirements.
Therefore, high-quality PCB manufacturing requires designers to embrace Design for Manufacturing (DFM) principles. Autodesk Fusion simplifies the DFM process by consolidating advanced simulation, real-time design rule checking, and mechanical synchronization in a cloud-based workspace.
What makes a layout production-ready?
Successful PCB production requires engineers to design their layouts with manufacturing capabilities in mind. For example, designers need to validate copper trace widths, clearances, and annular rings against the specific tolerances of their selected fabrication house. Should these considerations be left unchecked, the final design may experience short circuits or compromised structural integrity during plating.
Performance is also impacted by DFM. In the case of high-speed signals, controlled impedance must be maintained by the fabrication house, and that directly ties to trace geometry. For that reason, engineering teams will routinely use simulation tools to analyze electromagnetic interference and signal coupling before committing to a physical build.
With respect to component placement, designers are expected to group components based on signal flow to minimize trace lengths and reduce parasitic inductance. For example, it is good practice to place high-power components away from sensitive analog circuits to prevent thermal interference and noise. Similarly, designers should orient components to facilitate automated soldering processes, such as reflow or wave soldering, and to provide adequate clearance for test points and mounting hardware.
The final output for a PCB designer is the Gerber files and the Bill of Materials (BOM). This contains information about every PCB layer, from solder masks to drill locations, in a format that fabrication machinery can interpret unambiguously. A design is truly production-ready only when teams have confirmed every physical and electrical constraint through a thorough design rules check.
PCB lifecycle with Autodesk Fusion

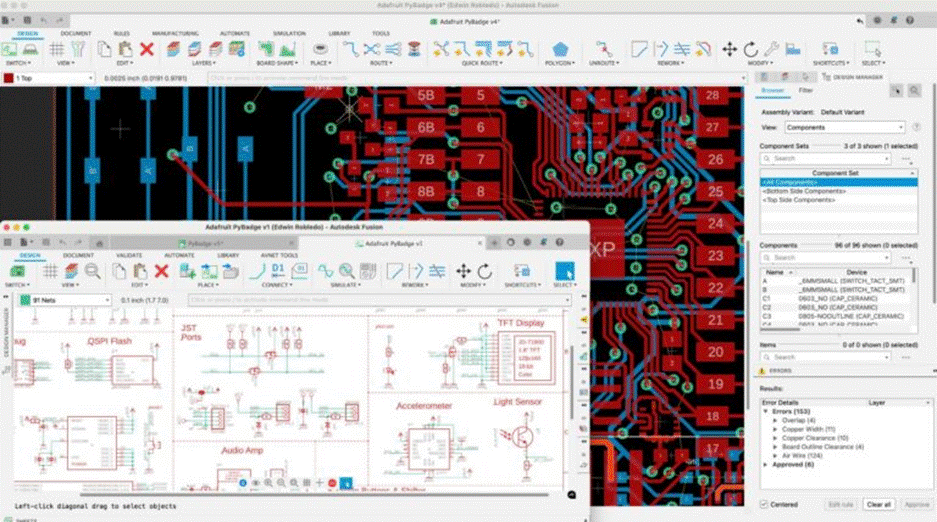

Autodesk Fusion provides a cloud-based environment where designers can manage the entire PCB lifecycle from a single platform.
With Fusion, the first benefit of an integrated workflow is that designers can move from schematic capture to PCB layout without the data loss that is typically associated with manual file conversions. The software maintains a live link between the electronic schematic and the physical board, meaning that all connections are synchronized throughout the iteration process. Such a high level of connectivity helps teams identify discrepancies early and reduce the risk of costly respins during the production phase.
Using Fusion, engineering teams can also perform advanced SPICE simulations to verify circuit behavior in various conditions. With these tools, designers can virtually test signal integrity and thermal performance to ensure their design meets performance targets before reaching the factory floor. Meanwhile, the integrated Design Rule Check (DRC) mechanism helps teams input custom manufacturing constraints directly into the workspace. With DRC, Fusion automatically verifies that every trace meets the specific requirements of the chosen fabrication partner and indicates potential errors in real time.
Product teams can further optimize designs with Fusion’s native ECAD-MCAD integration, which lets designers visualize the PCB inside its mechanical enclosure in a 3D environment. Teams can check for mechanical interferences, verify connector alignment, and ensure that thermal management components, such as heat sinks, fit perfectly. By unifying the electronic and mechanical workflows, Fusion helps designers produce high-quality products faster and with greater confidence in their manufacturability.
The path to manufacturing excellence
Going into production is a complex process that requires collaboration and attention to detail. By focusing on DFM and strategic component placement, designers can guarantee that boards are reliable and cost-effective to produce. Fortunately, Autodesk Fusion provides engineering teams with the tools they need to validate designs, simulate performance, and unify workflows.
