Precision in engineering and manufacturing mostly boils down to making sure that parts fit together, function correctly, and remain consistent across production runs. Traditional dimensioning methods, which rely on basic linear and angular measurements, often fail to account for the complex geometric relationships between features in three-dimensional space, leading to misinterpretations, manufacturing inefficiencies, and expensive rework.
Geometric Dimensioning and Tolerancing (GD&T) provides a standardized symbolic language for defining permissible variations in form, orientation, location, and profile of features. By specifying tolerances in a way that aligns with how parts actually function and interact, GD&T enhances clarity in engineering drawings, reduces ambiguity in manufacturing, and guarantees higher quality control. It enables engineers and manufacturers to define not only the size of a feature but also its shape, allowable variation, and relationship to other features.
Learn about the benefits of applying GD&T principles and how Autodesk Inventor makes these benefits tangible to designers everywhere.
Core concepts
At its core, GD&T is built around a structured framework of symbols, rules, and principles that allow for precise control over part dimensions and tolerances. Where traditional tolerancing mainly focuses on absolute dimensions and their allowable deviations, GD&T confirms that a feature’s form, orientation, and location are all considered in relation to its functional requirements.
Datums in GD&T
A fundamental concept in GD&T is the use of datums. These are reference points, lines, or surfaces that serve as the foundation for measurements and positioning. A datum establishes a coordinate system that allows engineers and machinists to precisely locate, and measure features relative to each other. By using a consistent datum structure, manufacturers can be confident that parts from different production batches remain interchangeable.
For example, in an automotive engine component, a mounting hole might need to be perfectly aligned with a reference surface to ensure proper assembly. In GD&T, a datum would be assigned to that reference surface, and tolerances would be applied relative to that datum to maintain consistency across all manufactured parts.
Feature control frames and GD&T symbols
In GD&T, feature control frames specify tolerances. A feature control frame is a rectangular box that contains three essential pieces of information
- A geometric characteristic symbol (such as position, flatness, or perpendicularity).
- A tolerance value that defines the acceptable deviation.
- A reference to the datum (if applicable) that establishes the measurement frame.
For example, a position tolerance feature control frame might specify that a hole’s center must be within 0.05 mm of a specified location relative to three different datum surfaces. This ensures that the hole is positioned correctly, regardless of any minor variations in the part’s overall dimensions.
The five major types of GD&T tolerances
GD&T categorizes tolerances into five primary groups, each of which governs a different aspect of part geometry:
- Form tolerances: These control the shape of individual features, ensuring they conform to a specified geometric form. Examples include flatness, straightness, circularity, and cylindricity.
- Orientation tolerances: These control the angular alignment of features relative to a datum. Examples include perpendicularity, parallelism, and angularity.
- Location tolerances: These define how precisely a feature must be located relative to a datum. The most common example is position tolerance, which confirms a hole or slot is correctly placed. Other location tolerances include concentricity and symmetry.
- Profile tolerances: These specify an acceptable variation for complex shapes, ensuring that curved or contoured surfaces maintain their intended form. Profile of a surface and profile of a line fall into this category.
- Runout tolerances: These control how much a surface or feature can deviate when rotated around an axis, ensuring smooth motion in rotating parts. Circular runout and total runout are used to manage balance and minimize vibration.
Applying GD&T in Autodesk Inventor
For engineers and designers working with GD&T, Autodesk Inventor provides a comprehensive suite of tools for defining, analyzing, and documenting geometric tolerances. By integrating GD&T directly into the design and documentation process, Inventor helps facilitate communication between design, manufacturing, and inspection teams.

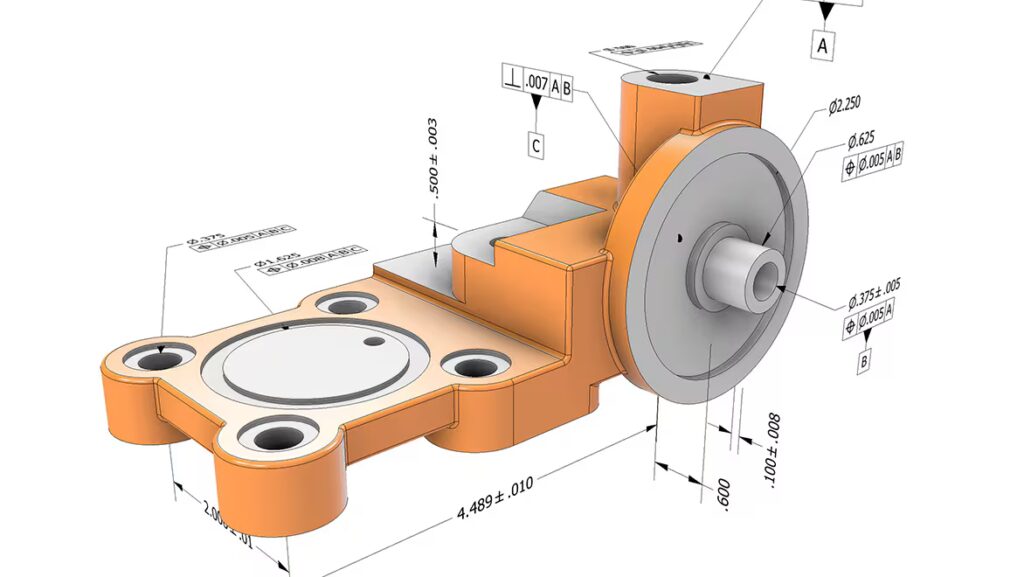

For example, within Inventor’s drawing environment, users can apply GD&T annotations directly to 3D models or 2D drawings. The GD&T symbol tool allows engineers to add feature control frames with industry-standard symbols. This ensures that all tolerances are correctly applied and easily interpretable.
In this respect, one of the advantages of Inventor is its ability to create associative annotations. When a 3D model is modified, all corresponding dimensions, annotations, and GD&T symbols in the 2D drawing are automatically updated. This feature eliminates inconsistencies between design and documentation and reduces errors that could lead to manufacturing defects.
Inventor also provides tools for defining datums and datum reference frames such that tolerances are correctly assigned relative to reference points.
GD&T in the manufacturing and inspection process
Beyond design documentation, Inventor enhances manufacturability by providing tolerance analysis tools. These tools help engineers evaluate the impact of geometric tolerances on part performance. By running a Tolerance stackup analysis, users can predict potential assembly issues before manufacturing begins, reducing the likelihood of rework.
Inventor also integrates with coordinate measuring machine (CMM) workflows to directly compare designed tolerances and actual manufactured parts. Engineers can guarantee that parts meet quality requirements by importing inspection data and overlaying it with the original GD&T specifications.
Conclusion
GD&T is a fundamental tool for achieving precision, consistency, and efficiency in engineering design and manufacturing. By providing a standardized system for defining tolerances, GD&T reduces ambiguity in technical drawings, improves part interchangeability, and minimizes production costs.
Autodesk Inventor simplifies the application, analysis, and documentation of GD&T. It offers tools for defining feature control frames, performing tolerance stackup analysis, and integrating with quality control processes. By embedding GD&T directly into the CAD workflow, Inventor helps engineers and manufacturers improve design accuracy and optimize production efficiency.
