PCB Layer Stack Fundamentals Part 2: Routing between Multiple PCB Layer Stacks

Edwin Robledo August 11, 2022 2 min read

Is there anything you should be aware of when routing between multiple PCB layer stacks? Let’s explore in this blog post.

PCBs with multiple layers exist because it’s impossible to route today’s complex circuits on only one layer. This means eventually, the trace you’re routing will have to continue on another layer. Let’s explore everything you should be aware of when routing between multiple PCB layer stacks.

Routing Between PCB Layer Stacks

Yes, there are important things to consider when routing between layers. We must ensure that the electric field associated with the signal does not spread into the dielectric sandwiched between. You may recall from part 1 (Fundamentals of PCB Layer Stacks – Part 1) that the electric field moves current through traces and that it is essential to structure our layer stack to minimize the overlap of electric fields. Here’s what we don’t want, as fields from the signal layers overlap with power fields:

fusion-360-pcb-layer-stack
A poor stack-up showing overlapping fields

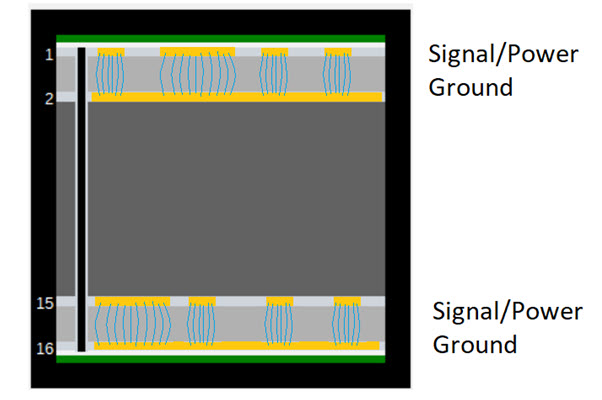

A better stack-up has ground planes adjacent to signal/power plane layers, as shown below:

fusion-360-pcb-layer-stackup

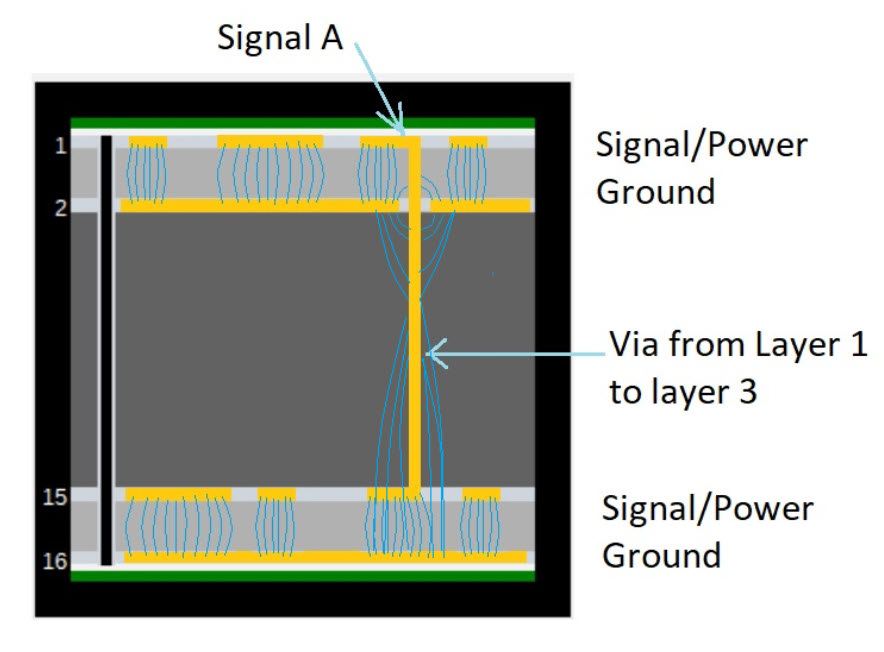

When moving from one signal layer to another, we should always ensure the signal layer we move to is on the other side of our ground return. This way, the field associated with the signal will be tightly coupled and will not spread out:

autodesk-fusion-360-pcb-layer-stack
The electric field is contained tightly around the via from
layer 1 to layer 3

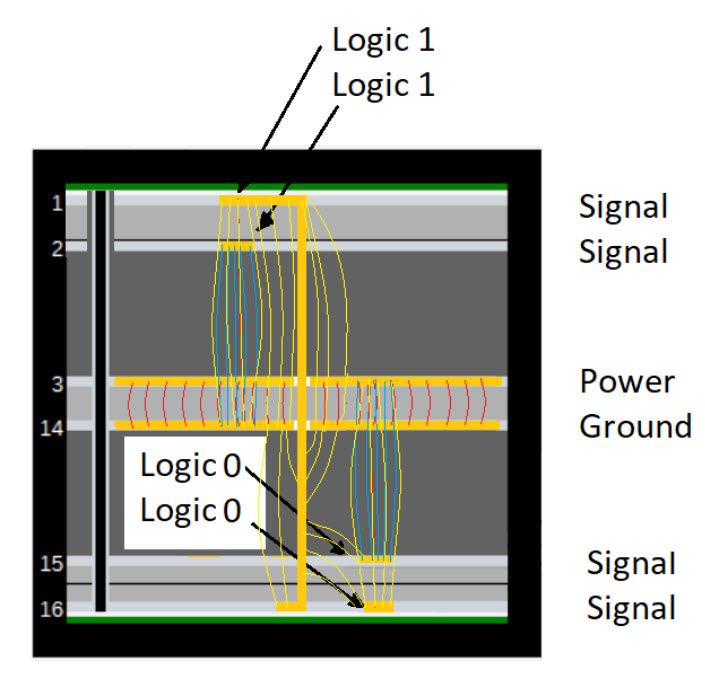

Let’s contrast that with a trace that travels between layers on a poor stack-up:

autodesk-fusion-360-pcb-layer-stack
Route from layer 1 to 6 electric fields spreads out and overlaps other electric fields

Here we see that the electric fields spread out and interfere with other fields. This will cause SI and PI, and EMI issues. These examples also highlight the importance of the ground plane being close to the signal trace. Consider the example below where the ground isn’t close to the signal trace:

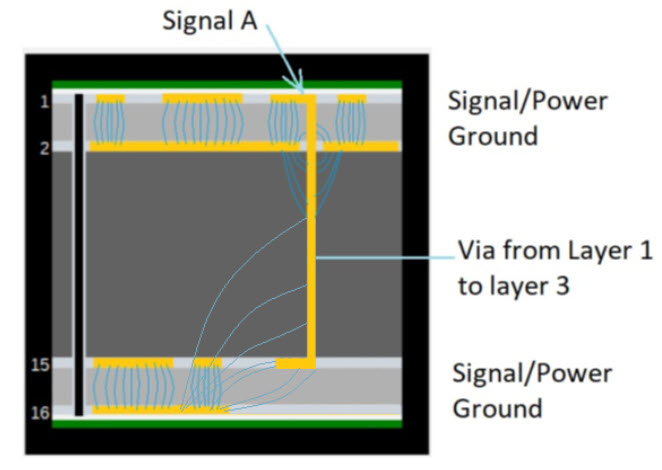

pcb-layer-stack
Fields overlap when the ground is not directly under trace

Once again, the electric field is spreading out and overlapping other fields. Always try to place ground underneath your signals.

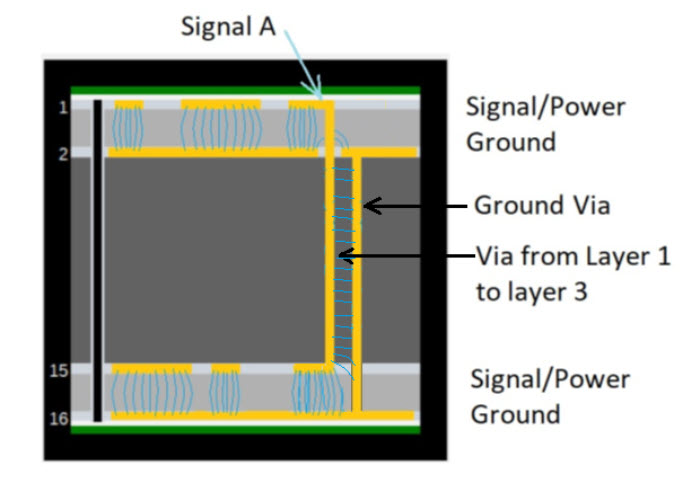

Often PCB designers will place a ground directly beside the signal via to ensure that the field is tightly contained:

pcb-layer-stack-fusion-360
Adjacent ground via when switching layers ensures a tight containment

Routing signals from one layer to another can result in SI, PI, and EMI issues due to overlapping electric fields. To minimize the overlapping of fields, ensure ground planes are underneath the signals, route from one side of a plane to the other, and use adjacent ground vias when possible. This will go a long way to minimizing SI, PI, and EMI issues.

Check out Part 1 of this series to learn what to watch out for when using multiple layers of copper in your PCB layer stack.
