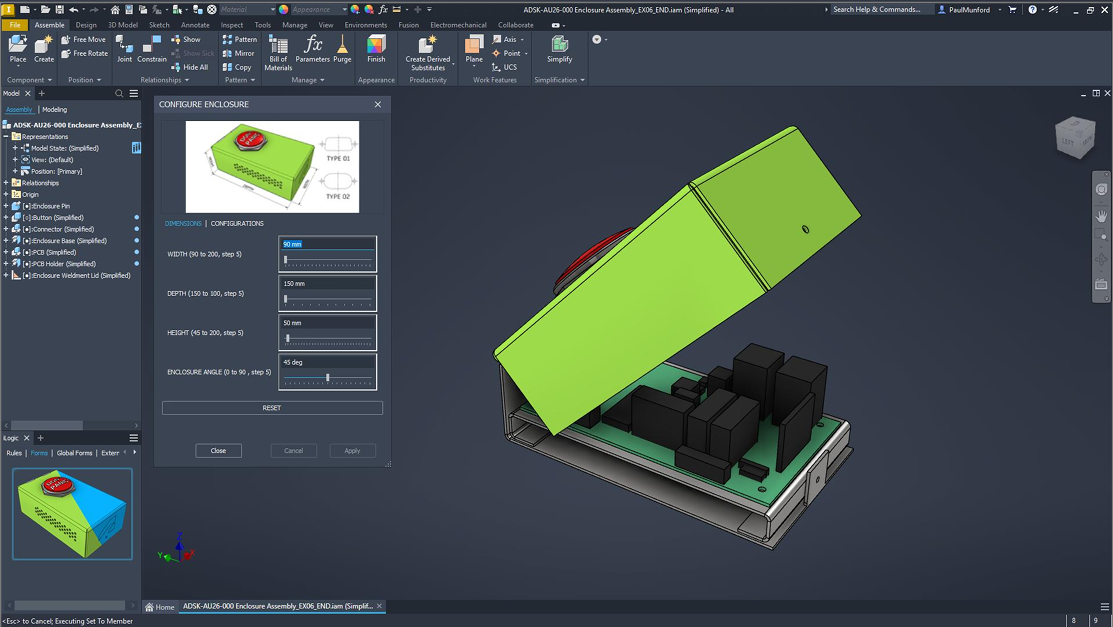

If you work across AutoCAD and Inventor, you already know the friction: a 2D layout lives in one tool, the 3D model lives in another, and keeping them in sync can turn into a game of file-hunting and re-work.
This post walks through four workflows: bringing AutoCAD drawings into Inventor, sending Inventor models back out to AutoCAD, keeping teams connected through Desktop Connector, and extending that connectivity into site context with Autodesk Forma.
Why this matters
Most mechanical teams don’t live in a single tool. Drafters may work in AutoCAD, designers build 3D models in Inventor, and electrical engineers work in AutoCAD Electrical. Without a deliberate exchange strategy, each handoff between tools risks broken references, duplicated modeling effort, or drawings that quietly go out of date. Autodesk has built several bridges between these products, and picking the right one for the job makes all the difference.
Part 1: Importing AutoCAD designs into Inventor
There isn’t a single “correct” way to bring AutoCAD geometry into Inventor — it depends on how much you need to reuse, and whether you need the connection to stay live.
1. Copy AutoCAD drawing to Inventor
The simplest option: select 2D geometry in AutoCAD, copy it, and paste it directly into an Inventor sketch. This is ideal for reusing simple profiles or outlines without rebuilding from scratch. The tradeoff is that there’s no live link back to the original AutoCAD drawing. Once it’s pasted, it’s static.
2. Open AutoCAD drawing in Inventor
You can open the original .dwg file directly inside Inventor. This maintains a live link to the DWG, so edits made in AutoCAD are reflected the next time you reopen the file in Inventor. It’s best suited for simple operations, like measuring geometry or exporting to print, rather than heavy 3D modeling.
3. Import AutoCAD drawing into Inventor
When you actually want to convert the drawing into Inventor’s native format, use Import. This is a three-step mental model:
- Convert DWG geometry into native Inventor sketches, ready for 3D modeling.
- Build 3D models from the imported 2D geometry using Project Geometry as your foundation.
- Integrate into assemblies, folding the imported geometry into larger Inventor projects seamlessly.
4. Reference AutoCAD drawing in Inventor
If you need the DWG to act as a living reference rather than a one-time snapshot, use a linked reference. This lets you:
- Maintain synchronization with the original AutoCAD drawing
- Use the DWG as a design underlay or background reference
- Overlay 2D geometry to validate 3D models as you build them
The pattern across all four options is the same tradeoff you’ll see throughout this post: the more convenient the transfer, the less connected it stays, and vice versa.
Cloud data management: Desktop Connector
Before jumping to the reverse workflow (Inventor → AutoCAD), it’s worth calling out the infrastructure that makes all of this collaboration practical at scale: Desktop Connector.
Desktop Connector maps Autodesk Construction Cloud (ACC) as a local Windows drive, letting AutoCAD and Inventor open and save files natively with no manual upload/download cycle, and no broken references. A few things it handles automatically:
- Virtual Drive Integration: open and save CAD files directly from native apps via a mapped ACC drive
- Preserves CAD Dependencies: tracks XREFs, image overlays, and Inventor assembly hierarchies (.iam, .ipt)
- Lock & Version Control: auto-locks files currently in use and syncs versions to the cloud on save
- Cross-Team Accessibility: mechanical engineers, electrical engineers, project managers, and field staff all work from the same unified data without breaking references
If your team is passing files back and forth over email or shared drives, this is usually the first fix worth making.
Part 2: Sending Inventor models back to AutoCAD
The reverse direction, Inventor to AutoCAD, comes up constantly when downstream teams (drafters, subcontractors, AutoCAD-only collaborators) need your design data in a familiar format.
1. Export DWG/DXF files from Inventor to AutoCAD
When you need to share Inventor designs as AutoCAD-compatible files, export directly to DWG or DXF. This preserves geometry for downstream drafting and documentation, and enables collaboration with AutoCAD users who don’t use Inventor at all.
2. Create model documentation
Rather than exporting geometry, you can generate associative 2D documentation straight from a 3D Inventor model:
- Create drawing views directly from the model
- Generate standard, projected, section, and detail views automatically
- Build Bills of Materials (BOMs) and parts lists from the 3D model data
- Keep drawings associative, so they update automatically as the model changes
That associativity comes with built-in safeguards. When a model changes, AutoCAD flags outdated drawing views through alert balloons, red markers, and status bar notifications, and separately flags any annotations that become disassociated. The result is drawing views, dimensions, BOMs, and annotations that stay accurate without manual policing.
3. From Inventor to AutoCAD: Import the model in
For a one-time transfer of design data, importing turns Inventor geometry into native AutoCAD geometry you can edit with standard tools. It’s a good fit for creating DWG drawings from Inventor models or reusing geometry inside DWG-based workflows.
4. Don’t import it. Link it.
If your team needs the relationship to persist, Inventor Link keeps AutoCAD Mechanical associatively connected to the Inventor design. Link Inventor parts and assemblies directly, and updates made in Inventor flow through to the AutoCAD Mechanical DWG automatically. This is the right call for teams working across Inventor and AutoCAD Mechanical doing downstream detailing. The distinction is worth remembering: import is “nice to meet you,” interoperability is “let’s stay connected.”
Beyond mechanical: Electrical and factory layout
Two workflows extend this same philosophy — geometry plus relationship — beyond pure mechanical design.
Electromechanical link (EMX) bridges AutoCAD Electrical schematics with Inventor’s 3D digital twin through an automated .emx bridge file, keeping electrical and mechanical teams synchronized in real time. It supports bi-directional sync (schematic changes reflect instantly in 3D models and vice versa), automated 3D cable routing driven by 2D wire data, and BOM alignment that keeps wire cut lengths and synced parts accurate — eliminating material waste from mismatched documentation.
Autodesk Factory Design Utilities does something similar for plant layout: design floor plans in 2D AutoCAD and watch parametric 3D plant models auto-populate in Inventor and Navisworks. This keeps layout, clash data, and asset libraries synchronized across platforms — with clash detection catching collisions before installation, and material flow analysis surfacing bottlenecks and transport costs in context.
Extending the picture: Desktop Connector and Autodesk Forma
The final piece is connecting all of this to the physical site itself. Pairing Desktop Connector with Autodesk Forma brings several advantages to project coordination:
- Single Source of Truth: centralizes drawings, external references, and site data in one cloud hub, eliminating broken file paths and outdated local revisions
- Instant Site Context: automatically aligns CAD geometry with real-world topography, surrounding structures, and GIS map layers without manual georeferencing
- Cloud-Linked Interoperability: Inventor files stored in the Forma cloud can be linked associatively via Desktop Connector into BIM workflows like Revit or Civil 3D, without manual file conversions
- Browser-Based 3D Visualization: architects, project managers, and site engineers can view full 3D assemblies, isolate components, inspect properties, and take measurements in a browser, with no Inventor license required
- Cloud Markup & Automated Versioning: stakeholders attach issues and review comments directly to 3D geometry, while every save creates an automatic version history with rollback and role-based permissions
Put together, these tools mean mechanical equipment and prefabricated components designed in Inventor can be coordinated with the broader site context, building models, and scheduling tools, all without leaving a connected, associative data trail.
The takeaway
Whether you’re moving geometry from AutoCAD to Inventor or back again, the decision boils down to one question: do you need a one-time snapshot, or a living connection? Copy/paste and import get geometry across quickly but leave it disconnected. Referencing and linking keep things synchronized at the cost of a bit more setup. Knowing which workflow fits your situation and pairing it with cloud infrastructure like Desktop Connector and Forma is what turns a chain of file conversions into an actual connected design process.
Frequently asked questions
AutoCAD and Inventor are designed to support different parts of the design process. AutoCAD is commonly used for 2D drafting and documentation, while Inventor is used for 3D mechanical design and engineering. Autodesk provides several workflows that allow teams to exchange geometry, reference files, and maintain connections between designs created in each application.
Yes. Inventor can import DWG files and convert AutoCAD geometry into native Inventor sketches. This allows designers to reuse existing 2D layouts and use them as the foundation for creating 3D parts and assemblies.
Importing converts AutoCAD geometry into Inventor data and creates a standalone version inside Inventor. Referencing keeps a link to the original DWG file so updates made in AutoCAD can be reflected in Inventor. Importing is best for one-time transfers, while referencing is better when designs need to stay synchronized.
Yes. Designers can copy 2D geometry from AutoCAD and paste it directly into an Inventor sketch. This is a quick way to reuse profiles or concepts, although the pasted geometry does not maintain a connection to the original AutoCAD file.
Yes. Associative drawing workflows and Inventor Link capabilities can maintain relationships between Inventor models and AutoCAD Mechanical drawings. When the Inventor model changes, linked drawings can be updated and outdated views are flagged automatically.
Inventor Link is a workflow that allows AutoCAD Mechanical drawings to maintain an associative connection to Inventor parts and assemblies. Unlike importing geometry, linking preserves the relationship so updates made in Inventor can flow through to downstream documentation.
Desktop Connector connects Autodesk Construction Cloud (ACC) projects to a user’s desktop as a virtual drive. It allows AutoCAD, Inventor, and other Autodesk applications to access cloud-based files as if they were stored locally, helping preserve references, assembly relationships, and project organization.
The most effective approach is to choose the appropriate level of connectivity for the project. Imports and copy-paste workflows are useful for quick transfers, while references, Inventor Link, Desktop Connector, and cloud-based collaboration tools are better suited for teams that need designs to stay connected throughout the product development process.
