IDAT GmbH

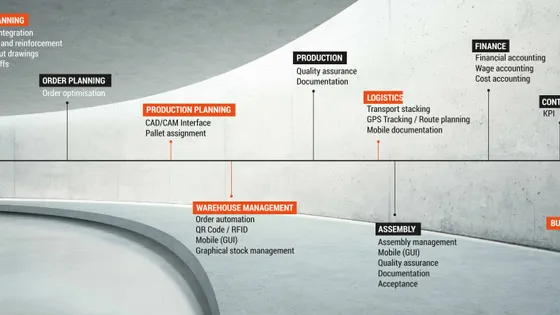

Overtaking a Revit model, splitting walls and floors, creation of Revit reinforcement and different shop drawings - Revit Precast supports the whole workflow in a precast factory. The elements can automatically be produced trough CAM interface. Factory planning tools and ERP systems are integrated.

Benefits of the solution

• Creation of Precast Elements with native Revit families

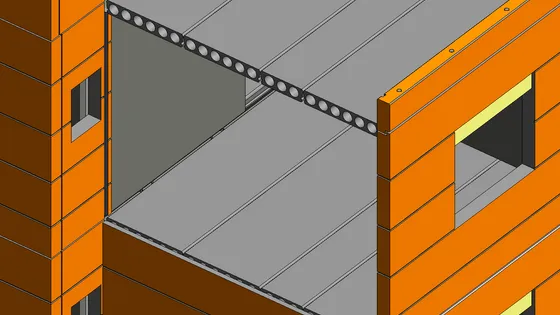

• Splitting of walls and floors into producible panels considering factory limitations
• Defining of reinforcement in Revit families
• Placing of lifting anchors and connection plates

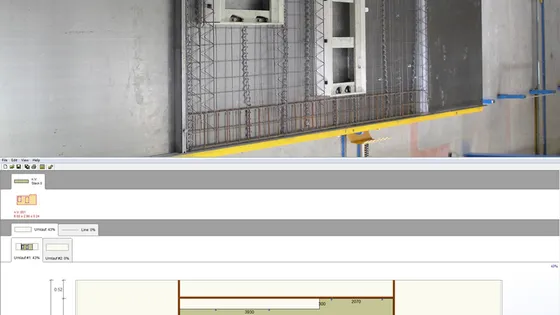

• Automatic creation of different shop drawings for one element (e.g. with or without reinforcement)
• CAM data for plotter, laser, reinforcement machine, shuttering robot, etc.
• Defining stacks for planning the transportation of the precast elements to the site
• Planning the production tables in the factory with real data from Revit
• Integration of ERP systems to full control of the precast factory
• Parametrized estimation of precast concrete projects
