In this productivity study,
you will see how the Raster Design toolset saves time through
Tools to execute the
correlation/scaling and coordinate values of a raster image in
The Raster Design palette
provides comprehensive image data including image properties,
image colors, and image file location.
Specialized tools that give
the same results as basic AutoCAD with quicker, more efficient
Define regions of varying
shapes in the raster image and manipulate them individually.
The Optical Character
Recognition (OCR) tools which convert raster text entities to
Multiline Text (MText)

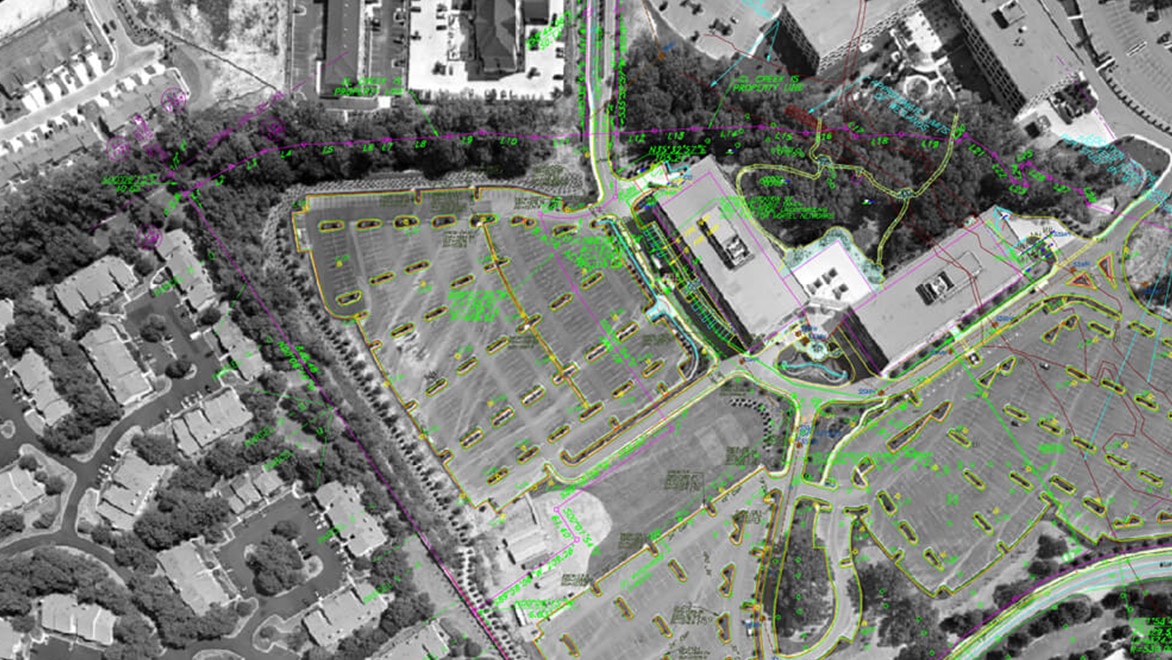

Image courtesy of Cingular Wireless
Download the productivity study
Fill out the short form to download the AutoCAD Raster Design toolset
productivity study to see how you can save time when working on a
drawing in AutoCAD® that requires the use of a raster image
to convey design intent.
About the study
Autodesk commissioned a study
that compared basic AutoCAD to the Raster Design toolset when
preparing designs using raster images.
Results showed that the Raster
Design toolset provided up to 48% overall productivity gain*
compared with basic AutoCAD, when these tasks were performed by an
experienced AutoCAD user.

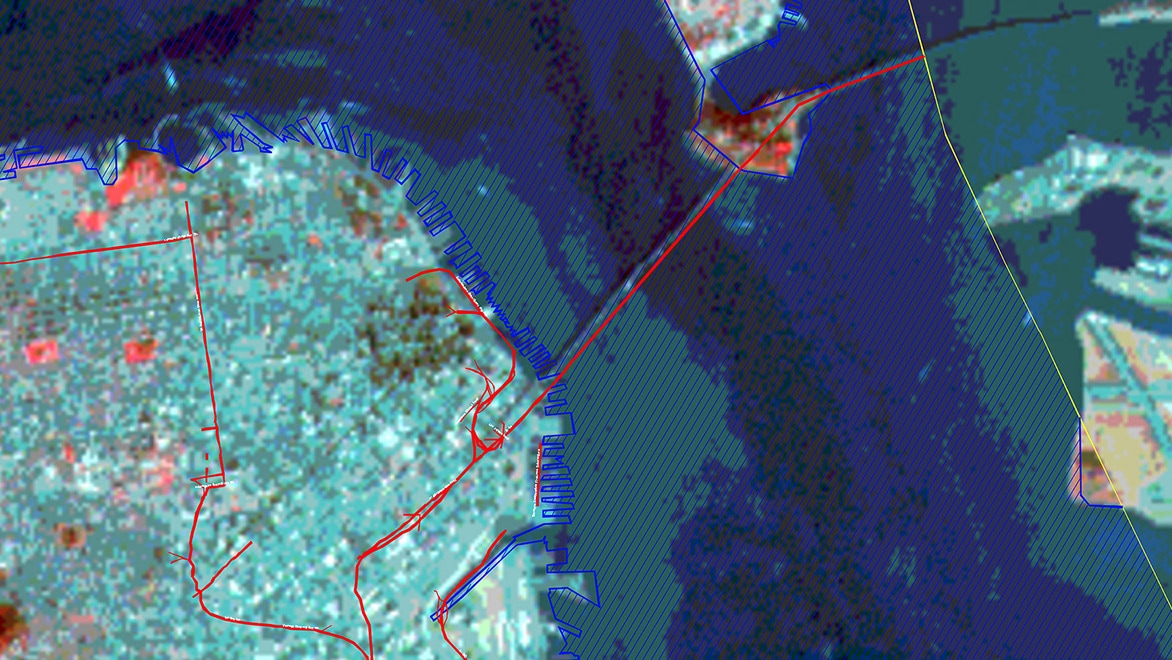

Image courtesy of American Digital Cartography Inc. and U.S. Geological Survey
*As with all performance tests, results may vary based on
machine, operating system, filters, and even source material.
While every effort has been made to make the tests as fair and
objective as possible, your results may differ. Product
information and specifications are subject to change without
notice. Autodesk provides this information “as is”, without
warranty of any kind, either express or implied.
