What’s new in Revit LT

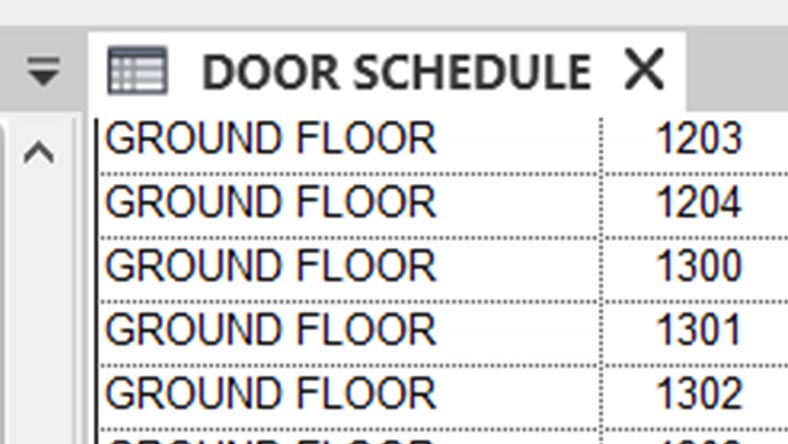

Autogenerated schedules
Automatically create building component schedules to improve the visibility of costs and quantities.
3D design and visualization
Create 3D views to better visualize and share your designs.

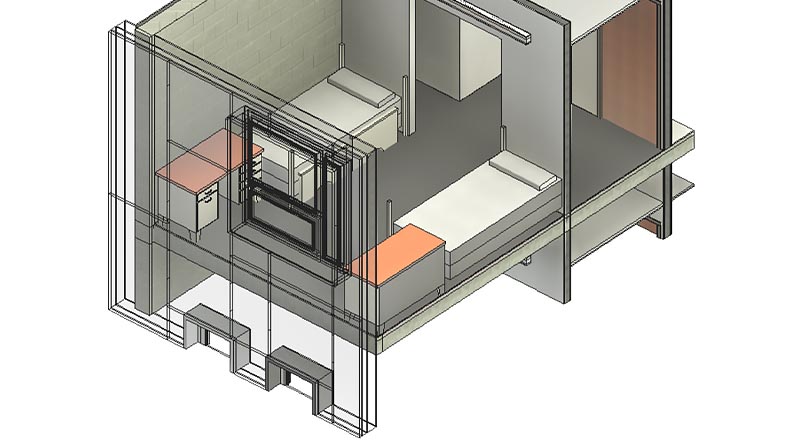

High-quality documentation
Create current and coordinated design documentation.
3D BIM vs. 2D design
Working in Revit LT, a 3D model-based environment, can deliver information about project design, scope, and phases when you need it.

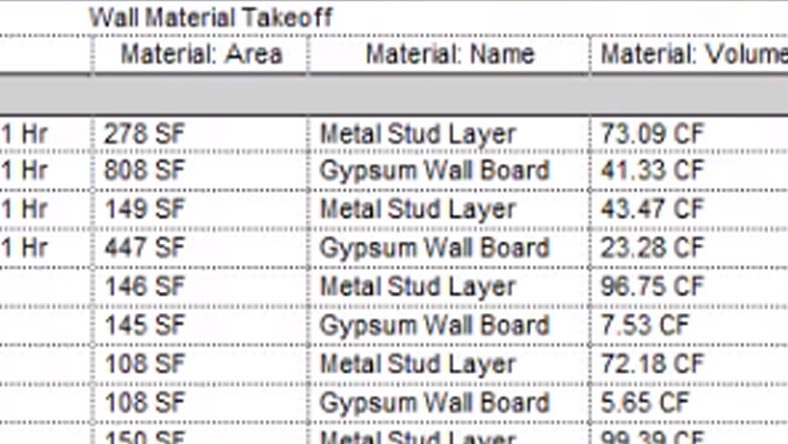

Quantify materials
Use real-world materials with Autodesk cloud services and use Revit LT to quantify through the use of schedules.
System requirements for Revit 2027 products
Revit 2027
Minimum: Entry-Level Configuration
Operating System | 64-bit Microsoft® Windows 11. See Autodesk's Product Support Lifecycle for support information. |
|---|---|
CPU Type | Intel® or AMD® processor with 2 GHZ or higher base core clock speed. Highest single core base clock speed (GHz) is recommended Autodesk® Revit® software products will use multiple cores for many tasks. |
Memory | 16 GB RAM Usually sufficient for a typical editing session for a single model up to approximately 300 MB on disk. This estimate is based on internal testing and customer reports. Individual models will vary in their use of computer resources and performance characteristics. Models created in previous versions of Revit software products may require more available memory for the one-time upgrade process. |
Video Display Resolutions | Minimum: Maximum: |
Video Adapter | Display adapter capable of 24-bit color, DirectX® 11 capable graphics card with Shader Model 5. Graphics card with minimum of 4GB of video memory recommended. |
Disk Space | 30 GB disk space for installation. 100 GB of free disk space for temp files recommended. |
Pointing Device | MS-Mouse compliant device |
.NET Platform | .NET 10 |
Browser | Chrome, Edge, or Firefox |
Desktop Connector Version | When using Desktop connector for Collaboration workflows - Revit 2027 requires Desktop Connector version 16.x or later. Version 15.8 or earlier is not supported for Revit 2027. Revit 2024 or earlier is compatible with Desktop Connector version 16.x. |
Connectivity | Internet connection for license registration and prerequisite component download. |
Accelerated Graphics Tech Preview | Not recommended with the entry-level configuration. |
Value: Balanced price and performance
Operating System | 64-bit Microsoft® Windows 11. See Autodesk's Product Support Lifecycle for support information. |
|---|---|
CPU Type | Intel® or AMD® processor with 2 GHZ or higher base core clock speed. |
Memory | 32 GB RAM or higher Usually sufficient for a typical editing session for a single model up to approximately 600 MB on disk. This estimate is based on internal testing and customer reports. Individual models will vary in their use of computer resources and performance characteristics. Models created in previous versions of Revit software products may require more available memory for the one-time upgrade process |
Video Display Resolutions | Minimum: Maximum: |
Video Adapter | Display adapter capable of 24-bit color and DirectX® 11 capable graphics card with Shader Model 5. |
Disk Space | 30 GB disk space for installation. 100 GB of free disk space for temp files recommended. |
Pointing Device | MS-Mouse compliant device |
.NET Platform | .NET 10 |
Browser | Chrome, Edge, or Firefox |
Desktop Connector Version | When using Desktop connector for Collaboration workflows - Revit 2027 requires Desktop Connector version 16.x or later. Version 15.8 or earlier is not supported for Revit 2027. |
Connectivity | Internet connection for license registration and prerequisite component download |
Performance: Large, complex models
Operating System | 64-bit Microsoft® Windows 11. See Autodesk's Product Support Lifecycle for support information. |
|---|---|
CPU Type | Intel® or AMD® processor with 2 GHZ or higher base core clock speed. |
Memory | 64 GB RAM or higher Usually sufficient for a typical editing session for a single model up to approximately 1 GB on disk. This estimate is based on internal testing and customer reports. Individual models will vary in their use of computer resources and performance characteristics. Models created in previous versions of Revit software products may require more available memory for the one-time upgrade process. |
Video Display Resolutions | Minimum: Maximum: |
Video Adapter | Display adapter capable of 24-bit color and DirectX® 11 capable graphics card with Shader Model 5. |
Disk Space | 30 GB disk space for installation. 100 GB of free disk space for temp files recommended. |
Pointing Device | MS-Mouse compliant device |
.NET Platform | .NET 10 |
Browser | Chrome, Edge, or Firefox |
Desktop Connector Version | When using Desktop connector for Collaboration workflows - Revit 2027 requires Desktop Connector version 16.x or later. Version 15.8 or earlier is not supported for Revit 2027 |
Connectivity | Internet connection for license registration and prerequisite component download. |
Revit Cloud Worksharing
Disk Space | Three times (3X) the total disk space consumed by equivalent RVT files for all cloud workshared projects accessed by the user. |
|---|---|
Revit Personal Accelerator | For optimized performance we recommend ensuring Revit Personal Accelerator (PAC) is always running on Revit users' machines, even when Revit itself isn't running. Revit Personal Accelerator keeps the latest changes up to date on the local machine for each recently accessed cloud model, avoiding the need to download those changes each time the model is opened. |
Minimum | Value | Performance | |
|---|---|---|---|
Connectivity | Minimum Internet connection able to deliver symmetrical 5 Mbps connection for each machine on burst transfers. | Value Internet connection able to deliver symmetrical 10 Mbps connection for each machine on burst transfers. | Performance Internet connection able to deliver symmetrical 25 Mbps connection for each machine on burst transfers. |
Revit LT 2027
Operating System | 64-bit Microsoft® Windows 11. See Autodesk's Product Support Lifecycle for support information. |
|---|---|
CPU Type | Intel® or AMD® processor with 2 GHZ or higher base core clock speed. |
Memory | 16 GB RAM Usually sufficient for a typical editing session for a single model up to approximately 300 MB on disk. This estimate is based on internal testing and customer reports. Individual models will vary in their use of computer resources and performance characteristics. Models created in previous versions of Revit software products may require more available memory for the one-time upgrade process. |
Video Display Resolutions | Minimum: Maximum: |
Video Adapter | Display adapter capable of 24-bit color and DirectX® 11 capable graphics card with Shader Model 5. |
Disk Space | 30 GB disk space for installation. 100 GB of free disk space for temp files recommended. |
Pointing Device | MS-Mouse or 3Dconnexion compliant device |
.NET Platform | .NET 10 |
Browser | Chrome, Edge, or Firefox |
Desktop Connector Version | When using Desktop Connector for Collaboration workflows - Revit LT 2027 requires Desktop Connector version 16.x or later. Version 15.8 or earlier is not supported for Revit LT 2027. |
Connectivity | Internet connection for license registration and prerequisite component download |
Revit Server 2027
Operating System | Microsoft® Windows Server® 2025 64-bit |
|---|---|
Web Server | Microsoft® Internet Information Server 7.0 (or later) |
.NET Platform | .NET Framework Version 4.8.x |
<100 Concurrent Users (multiple models) | Minimum | Value | Performance |
|---|---|---|---|
<100 Concurrent Users (multiple models) CPU Type | Minimum 4+ cores | Value 6+ cores | Performance 6+ cores |
<100 Concurrent Users (multiple models) Memory | Minimum 8 GB RAM | Value 16 GB RAM | Performance 32 GB RAM |
<100 Concurrent Users (multiple models) Hard Drive | Minimum 7,200+ RPM | Value 10,000+ RPM | Performance 15,000+ RPM |
100+ Concurrent Users (multiple models) | Minimum | Value | Performance |
|---|---|---|---|
100+ Concurrent Users (multiple models) CPU Type | Minimum 4+ cores | Value 6+ cores | Performance 6+ cores |
100+ Concurrent Users (multiple models) Memory | Minimum 8 GB RAM | Value 16 GB RAM | Performance 32 GB RAM |
100+ Concurrent Users (multiple models) Hard Drive | Minimum 10,000+ RPM | Value 15,000+ RPM | Performance High-Speed RAID Array |
100+ Concurrent Users (multiple models) Virtualization | Minimum VMware® and Hyper-V® Support (See Revit Server Administrator’s Guide) | Value VMware® and Hyper-V® Support (See Revit Server Administrator’s Guide) | Performance VMware® and Hyper-V® Support (See Revit Server Administrator’s Guide) |
Revit 2027 and Revit LT 2027
For Apple Computers: Recommended-Level Configuration
Virtual Machine Application | Parallels Desktop® for Mac Recommended |
|---|---|
Host Operating System | macOS 13.7 (“Ventura”) or newer |
Memory | 32 GB |
CPU Type | GHz quad-core Intel® Core i7™ or higher Intel based Mac |
Virtualization Software | Parallels Desktop for Mac |
Virtual Machine Operating System¹ | Microsoft Windows 11 (Apple silicon chips or Intel processors) |
Virtual Machine Browser | Chrome, Edge, or Firefox |
.NET Platform | .NET 10 |
Virtual Machine Memory | 16 GB RAM Usually sufficient for a typical editing session for a single model up to approximately 300 MB on disk. This estimate is based on internal testing and customer reports. Individual models will vary in their use of computer resources and performance characteristics. Models created in previous versions of Revit software products may require more available memory for the one-time upgrade process. |
Virtual Machine Video Adapter | 4 GB video memory minimum dedicated to the Microsoft Windows Virtual Machine. Starting with Parallels Desktop for Mac version 14, use Automatic graphics memory for maximum efficiency. Accelerated Graphics: Not Supported with Parallels Desktop® for Mac. |
Disk Space | Minimum 40 GB free disk space; recommend 100 GB free disk space available |
Pointing Device | MS-Mouse compliant device |
Desktop Connector Version | When using Desktop Connector for Collaboration workflows - Revit 2027 products requires Desktop Connector version 16.x or later. Version 15.8 or earlier is not supported for Revit 2027 products. |
Connectivity | Internet connection for license registration and prerequisite component download. |
Accelerated Graphics Tech Preview | Not recommended with Parallels Desktop® for Mac. |
¹ Learn more about using Autodesk Revit or Autodesk Revit LT software with Boot Camp, part of macOS that enables you to install and run Microsoft Windows (and Windows-based applications) on a Mac® computer or with Parallels Desktop, a system utility available from Parallels, Inc. that allows you to run applications in each operating system without restarting your computer.
Note: Not all Autodesk product offerings may be virtualized. You may virtualize a product only if the applicable terms and conditions governing your access to and use of that offering expressly permit virtualization. Where virtualization is authorized, all conditions and limitations specified in the applicable terms and conditions apply. Autodesk may make available information regarding use of products in virtualized environments. Such information is offered solely for your convenience, on an “as is” basis, and may contain errors, inaccuracies, or may be incomplete. Autodesk makes no representations, warranties or other promises related to use of any product in any virtualization environment or with any virtualization technology. If you are authorized to virtualize and elect to do so, you assume all risks associated with such use, including, but not limited to incompatibility between the product and third-party virtualization technology and/or your virtualization environment. Read our Terms of Use for more information.
Autodesk, the Autodesk logo, Revit, and Revit LT are registered trademarks or trademarks of Autodesk, Inc., and/or its subsidiaries and/or affiliates, in the USA and/or other countries. Boot Camp, Mac, MacBook Pro, OS X, and Retina are trademarks of Apple, Inc., registered in the U.S. and other countries. Microsoft, DirectX, Internet Explorer, and Windows are all either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Citrix and XenApp are registered trademarks of Citrix Systems, Inc. VMware, VMware Horizon, VMware VSphere and vSphere are registered trademarks or trademarks of VMware, Inc. All other brand names, product names, or trademarks belong to their respective holders. Autodesk reserves the right to alter product and services offerings, and specifications and pricing at any time without notice, and is not responsible for typographical or graphical errors that may appear in this document.
