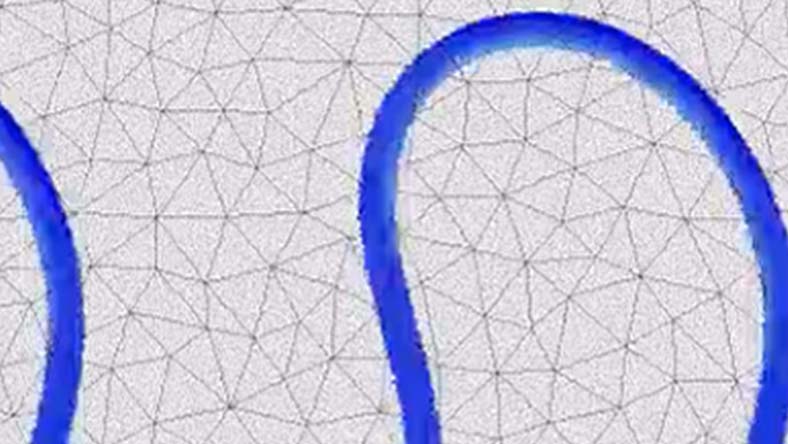

Subgrid Sampling
You now have the option to use larger mesh elements in your model while still capturing highly accurate and detailed topographical changes in your surface, leading to faster and more accurate simulations.

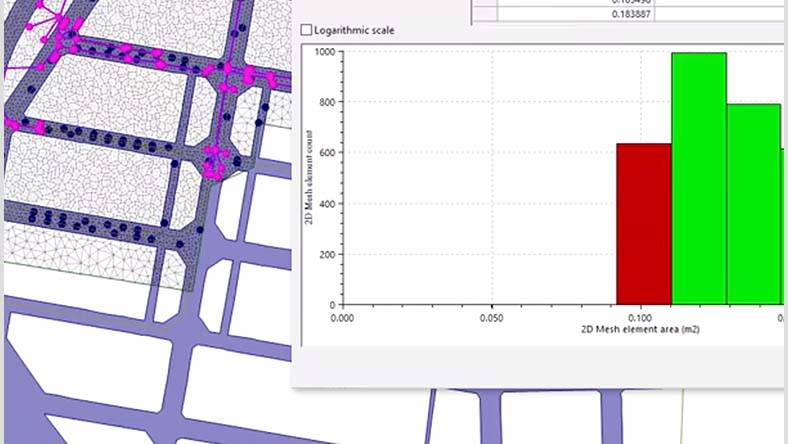

2D mesh histograms
Easily identify any 2D mesh element areas that are smaller than the specified minimum element size, making the model troubleshooting process more efficient.

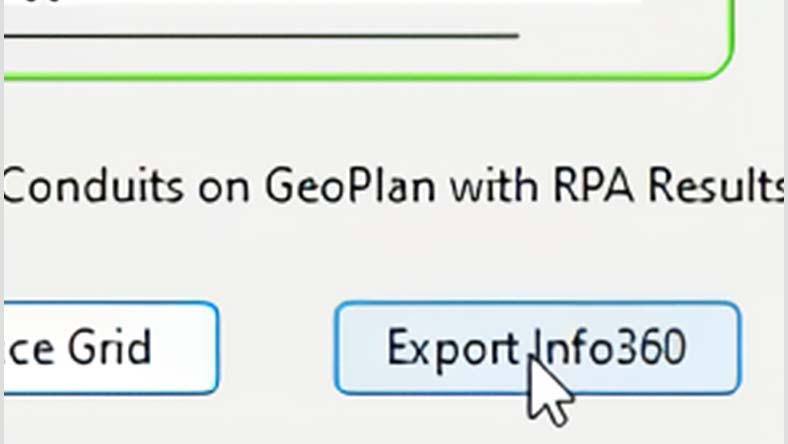

RPA report export to Info360
While running RPA reports, easily understand how a drainage system will perform under various rainfall conditions in relation to asset management data.
InfoWorks ICM Viewer
You can now view model data and analyze existing results in InfoWorks ICM using the new Autodesk InfoWorks ICM Viewer. You do not need an Autodesk licence to use it, but you will need an Autodesk account.
Copying cloud simulation results
You can now copy simulation results from a run in a cloud database whose full results have been downloaded, to a transportable database version 2024.5 or newer. This lets you share the results between cloud and on-premise databases, or with other users, by copying the results from the transportable to an on-premise database.
Cloud enhancements
InfoWorks ICM users can now access results faster than ever with direct access to cloud simulation results. Interrogate and export some cloud results without downloading the full time-series results. Scalar and spatial time series data (TSD) objects are now available in cloud databases.
Civil 3D integration
Civil 3D designers can now easily share designs with hydraulic modelers. Export a sanitary and storm sewer pipe network into InfoWorks ICM, run simulations on the network model, and make adjustments where needed. Then, transfer these changes back to the model in Civil 3D for a streamlined planning and design process.
System requirements for InfoWorks ICM
System requirements for InfoWorks ICM
InfoWorks ICM 2025
InfoWorks ICM 2026
The system requirements vary depending on which type of license and installer you have and what type of database will be used with InfoWorks ICM.
Cloud Databases & Simulations
Products and versions covered:
ICM | |
|---|---|
Operating system | ICM Windows 10, 11 (64-bit) |
CPU | ICM Intel Core i3, i5, i7, Xeon Processors or equivalent AMD processor; SSE2 (or greater) |
Memory | ICM 4 GB minimum, at least 8GB recommended (1D Model Build) |
Display resolution | ICM 1440 x 900 recommended or higher at Normal size (96dpi) |
Disk space | ICM 100 GB (1D Models) |
Graphics hardware | ICM N/A |
Internet connection | ICM 50Mbps download / 15Mbps upload |
On-premise Databases & Simulations
ICM | Workgroup Data Server2 | Remote Agent3 | |
|---|---|---|---|
Operating system | ICM Windows 10, 11 (64-bit) | Workgroup Data Server2 64-bit Windows Server | Remote Agent3 Windows 10, 11 (64-bit) |
CPU | ICM Intel Core i3, i5, i7, Xeon Processors or equivalent AMD processor; SSE2 (or greater) | Workgroup Data Server2 At least 2 processor cores | Remote Agent3 I Intel Core i3, i5, i7, Xeon Processors or equivalent AMD processor; SSE2 (or greater) |
Memory | ICM 4 GB minimum, at least 8GB recommended (1D Model Build) | Workgroup Data Server2 4 GB minimum, at least 16GB recommended | Remote Agent3 16-32 GB RAM (1D and 2D Models) |
Display resolution | ICM 1440 x 900 recommended or higher at Normal size (96dpi) | Workgroup Data Server2 No UI components | Remote Agent3 No UI components |
Disk space | ICM 100 GB (1D Models) | Workgroup Data Server2 Sufficient to handle large model data results and ancillary data such as ground models, e.g., tens of GBs | Remote Agent3 100 GB (1D Models) |
Graphics hardware | ICM For 2D Simulations: | Workgroup Data Server2 No UI components | Remote Agent3 For 2D Simulations: |
Internet connection | ICM N/A | Workgroup Data Server2 N/A | Remote Agent3 N/A |
1Cloud databases and simulations are only available with Autodesk supplied licenses and installers. 2A Workgroup Data Server (WDS) is an optional component that manages access to workgroup on-premise databases. It is not required for standalone or cloud databases. Although optional, it is recommended when there is more than one user that accesses the same database. The WDS is normally installed on a different machine than the one ICM is installed on. 3A Remote Agent is a dedicated high-performance machine that is primarily used to run simulations. Using a Remote Agent is optional but is recommended if you want to run and execute simulations faster than would be possible on machines where ICM, and other software, is also installed. Remote Agents are not available with Autodesk supplied licenses. However, you can still use a Remote Agent when your users are using Autodesk supplied ICM licenses if the Remote Agent uses an Innovyze supplied Thales type of ICM license.
Notes: The installers that install the Innovyze licensed products continue to also install 32-bit versions of the software.
The software is not supported on the Intel Itanium architecture and on the ARM architecture, and will not run on and cannot be installed on Windows RT or Windows 10 S.
It may be necessary to update the Microsoft .NET framework before installing the software if you are installing desktop client software.
When interfacing to third-party software including GIS products and SCADA systems, and when using Oracle and SQL Server databases, you need to ensure that the software is supported by its vendor on the platform you are using.
Within that constraint, versions of Oracle and SQL Server supported are Oracle 18c and 19c and SQL Server 2016, 2017 and 2019.
