One firm’s accelerated construction ethos is getting young engineers up to speed

Faced with too-long construction schedules and a talent gap, Wisconsin-based engineering firm GRAEF responded with accelerated processes to help it do what it does best: Fix the problem.

Two engineers, one middle-aged, one young, wearing vests and hard hats on a construction site

Cheryl Goldberg

December 19, 2019

min read
  • GRAEF, an engineering and consulting firm, implemented the GRAEF Accelerate program to speed up construction schedules and address a skills gap in engineering talent.

  • The program streamlines structural-engineering processes, eliminates RFIs, and allows for in-house creation of shop drawings, resulting in faster design processes and improved coordination.

  • GRAEF has completed five buildings under the accelerated construction program and plans to expand it to all 65 of its structural engineers, technicians, and detailers.

When the project manager for GRAEF, a multidisciplinary engineering and consulting firm based in Milwaukee, WI, made a fateful visit to one of the company’s construction sites, he inspected the completed concrete foundation for the building, then asked when he could come back to observe the structural steel erection. “The answer was something ridiculous, like a month,” says Michael Vogel, principal/Sports Team Leader at GRAEF. “The contractor couldn’t move forward because it couldn’t get the steel to the site quickly enough. The project manager came to us and said, ‘We should be able to fix this process.’”

And fix the process they did. As Vogel says, “We’re engineers. That’s what we do. We make things efficient.”

In the summer and fall of 2017, the firm kicked off a program called GRAEF Accelerate, which integrated Autodesk Revit, Advance Steel, and Navisworks to speed up construction schedules by minimizing unnecessary downtime. GRAEF Accelerate is also closing a skills gap in engineering talent: The program enables the firm to train young engineers faster and better than before and also helps attract and retain engineers eager to work with the latest BIM (Building Information Modeling) technology.

Over the past 12 to 18 months, GRAEF has completed and put in service five buildings under the GRAEF Accelerate program. The firm expects to expand the program from its initial pilot group of about 15 engineers and technicians to all 65 of its structural engineers, technicians, and detailers over the next 12 months.

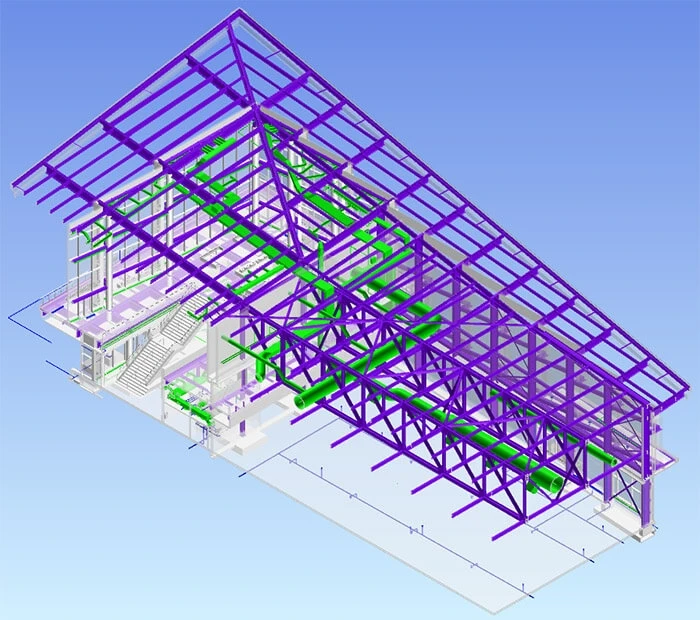

Accelerated construction model of the Brown County Expo Center navisworks
A model of the Brown County Expo Center demonstrates multidisciplinary coordination in Navisworks. Image courtesy of GRAEF.

The program has already impressed clients with its responsiveness. “The Brown County Expo Center in Green Bay, WI had to be finished by a particular date to be ready for a professional sports event,” Vogel says. “As we developed the schedule, we realized that the project hadn’t started soon enough to hit that immovable deadline using traditional construction processes. With GRAEF Accelerate, we shaved 10 weeks off the schedule to complete the project in time.”

Modernizing processes

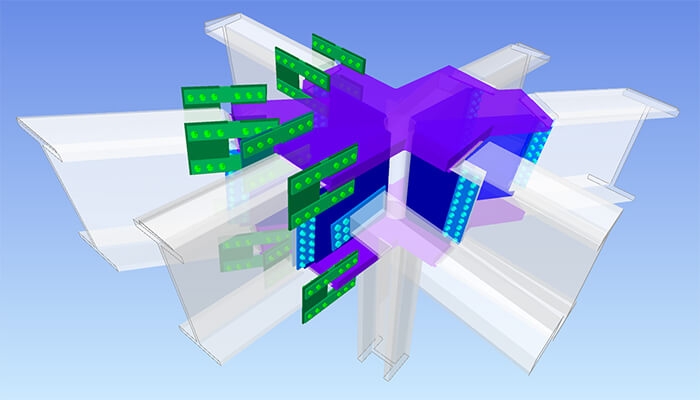

Accelerated construction 3D rendering detail Brown County Expo Center Navisworks
A detail of the Brown County Expo Center. Image courtesy of GRAEF.

The new GRAEF Accelerate process brings formerly separate structural-engineering processes, performed by different subcontractors that each required a separate model, under one roof and a single model.

In a typical structural-design project, GRAEF’s deliverable is a set of 2D construction documents. The industry-standard process was to take that construction document and bid out the process of creating shop drawings, which map out the details of the individual steel components (columns, beams, joists, trusses, and braces) to a third-party structural-steel fabricator. The fabricator would then bid out the job to a structural-steel detailer to build a 3D model from the 2D construction documents. A connection designer would create yet another model for clash detection to ensure all the components connected properly.

Now, GRAEF performs all of these roles in-house. The company’s structural engineers create a single model that the engineer, detailer, and connection designer all work on at the same time.

“Now we can deliver finished shop drawings immediately after we complete the construction documents, rather than requiring the fabricator to wait to start working until we’re done creating the construction documents,” Vogel says. The resulting design process is much faster, saving a couple of weeks to three months depending on the scale of the project.

Better coordination also virtually eliminates the tens to hundreds of RFIs (requests for information) formerly generated for each project. “We’ve eliminated the ‘telephone tag’ that comes from having several subcontractors involved in the process,” Vogel says. “For example, if a delegated connection designer hired by the fabricator had a question, they’d have to go to the fabricator, who asked the construction manager, who went to the architect, who gave it to their client the structural engineer. Now the detailer can walk across the aisle to the engineer and say, ‘What was your intent here?’ or ‘How does this look?’ We no longer have RFIs and all that manpower chasing the question through the weeds.”

Filling the engineering gap

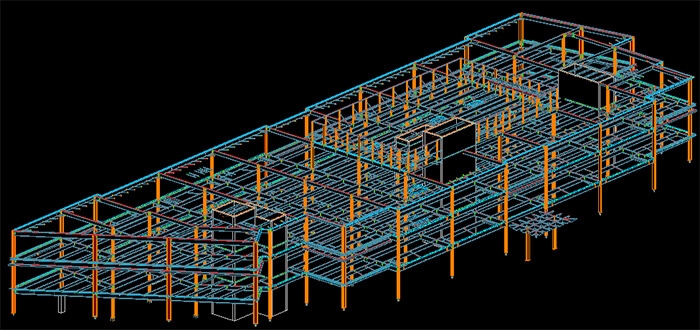

Accelerated construction GRAEF accelerate program, model of a client's corporate headquarters
A model of a client’s corporate headquarters designed in GRAEF’s Accelerate Program. Image courtesy of GRAEF.

A happy by-product of GRAEF’s process innovations has been a significant improvement in training young engineers to address a long-standing skills gap. “At GRAEF, we see a shortage of 10-year engineers, created by the Great Recession,” Vogel says. “Across the country, the industry lost 30 percent of its staff, and those folks aren’t coming back. GRAEF Accelerate is helping us train new engineers more quickly to fill that gap.”

Indeed, the program is helping the firm train what it calls “super engineers.” “They learn things now that they previously would have had to learn by immersion over a 20-year career,” Vogel says.

Twenty years ago, when structural engineers came out of school, they built 2D construction drawings and reviewed shop drawings that showed all the individual components of the “kit” that comprises a building. “Now they live in the 3D model,” Vogel says. “We have our new engineers do things that we call ‘putting on the jewelry.’ We have them model things like bent plates, kickers, stiffeners, and so on in 3D. This gives new engineers early exposure to how the pieces of steel connect to each other, why they go where they go, and how to design those connections. It teaches them about constructability.”

The GRAEF Accelerate program is also helping the company recruit and retain engineers, which is paramount to the success of any firm. “We think GRAEF Accelerate is the future of structural engineering,” Vogel says. “It’s not standard yet, but we think that it will become standard over the next decade. Too much value gets driven into the process for it not to be. And engineers recognize that value. People come to us for the opportunity to work with this technology, which is flipping the industry on its head—both young and experienced engineers are excited to be part of this vision.”
