Flat Pattern Extractor

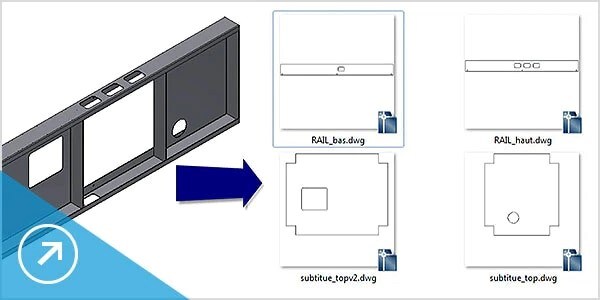

Save time and create all sheet metal flat pattern DWG / DXF files in one click, directly from the assembly document. Flat Pattern Extractor is ideal for laser cutting and nesting software. The Flat Pattern Extractor will remember all your default settings for file format, layers and geometry conversion. The Flat Pattern Extractor can generate a wide range of file formats from older Autodesk® AutoCAD® Release 12 DXF to the newest DWG formats that will work with most common postprocessors.

BENEFITS

Time savings, assures uniform exported DXF or DWG files

App details

Integration

Flat Pattern Extractor is an Add in to Autodesk® Inventor®
Compatibility

Autodesk® Inventor® 2022, Autodesk® Inventor® 2020, Autodesk® Inventor® 2019
Target industries

Sheet Metal Manufacturer, CNC
Languages

English
Countries

Worldwide
Additional information

Watch the app video

Available on the Autodesk App Store
